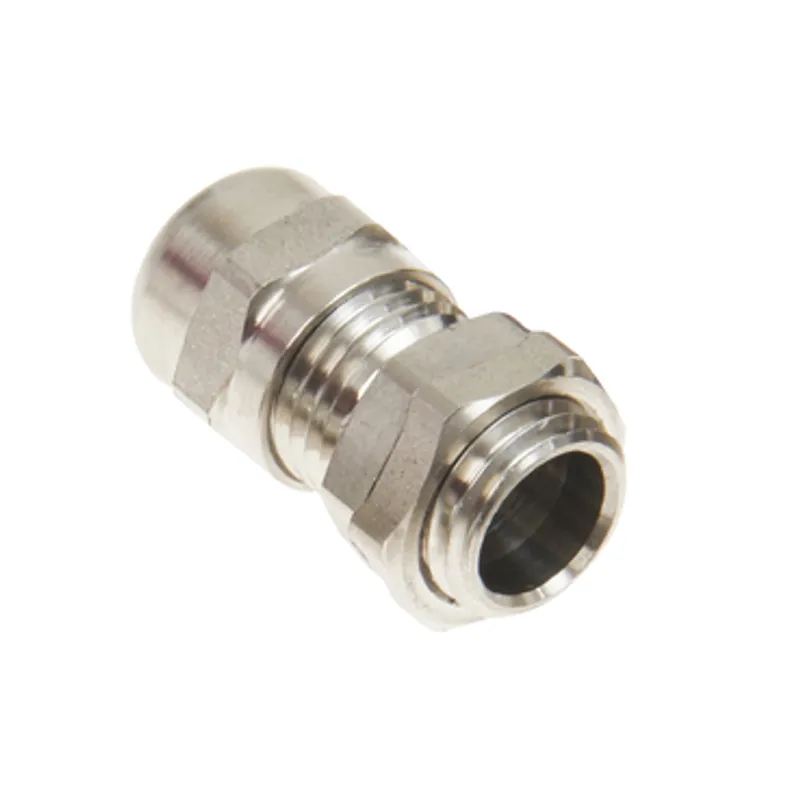

Set of cable gland + nut stainless steel M20 AISI304L, IP68, UL approved
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.03 kg |
Shipping & availability
When can NSYCGX20 be shipped?
NSYCGX20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCGX20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCGX20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCGX20, subject to availability and destination.
Schneider Electric Set of cable gland + nut stainless steel M20 AISI304L, IP68, UL approved, manufacturer part number NSYCGX20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure top, Enclosure bottom |
| Cable entry | Cable gland M20 |
| Device composition | 1 cable gland, 1 lock nut, 1 seal |
| Quantity per set | Set of 4 |
| Material | Seal: CR (chloroprene), Body: stainless steel AISI 304L |
| Colour | Grey |
| Fixing mode | Screwed, By nut |
| Height | 36 mm |
| Net weight | 0.034 kg |
| Product certifications | VDE |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -40…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 3.500 cm |
| Package 1 Weight | 39.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 11.000 cm |
| Package 2 Width | 28.500 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.938 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 960 |
| Package 3 Height | 47.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 67.500 kg |
| Warranty | 18 months |
