Schneider Electric NSYCGX40

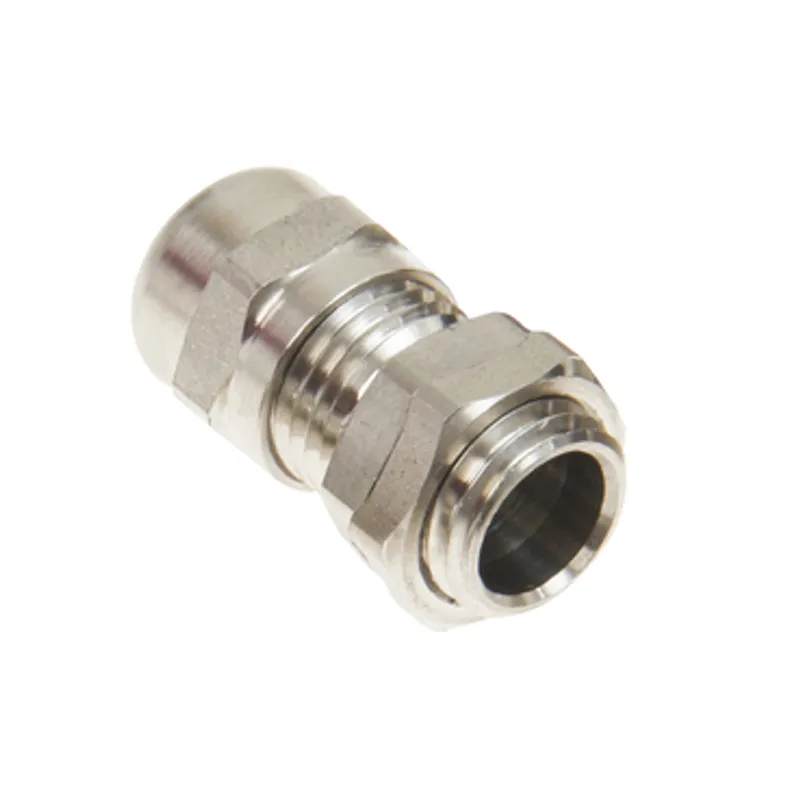

Set of cable gland + nut stainless steel M40 AISI304L, IP68, UL approved
- MPN
- NSYCGX40
- EAN
- 3606481360267
- Category
- PanelSeT CRN
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYCGX40?
Cable gland for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X enclosures The product is made of CR (chloroprene) seal and stainless steel AISI 304L body The height is 49,6mm This gland has a thread size of M40 and allows you to mount a cable into a pre-drilled hole The set contains 1 cable gland, 1 lock nut and 1 seal The cable gland is to be mounted on enclosure bottom and enclosure top Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments Flame resistance V2 conforming to UL 94 Ambient air temperature for operation -20-100 °C permanent and -40-150 °C intermittent Conforms with VDE certification
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure bottom, Enclosure top |
| Cable entry | Cable gland M40 |
| Device composition | 1 cable gland, 1 lock nut, 1 seal |
| Quantity per set | Set of 2 |
| Material | Seal: CR (chloroprene), Body: stainless steel AISI 304L |
| Colour | Grey |
| Fixing mode | Screwed, By nut |
| Height | 49.6 mm |
| Net weight | 0.132 kg |
| Product certifications | VDE |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -40…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
Packaging
| Package 1 | 1 PCE, 5.000 cm × 4.500 cm × 4.500 cm (L × W × H), 167.000 g |
| Package 2 | 8 CAR, 40.000 cm × 28.500 cm × 11.000 cm (L × W × H), 1.748 kg |
| Package 3 | 320 P12, 120.000 cm × 80.000 cm × 80.000 cm (L × W × H), 85.000 kg |
