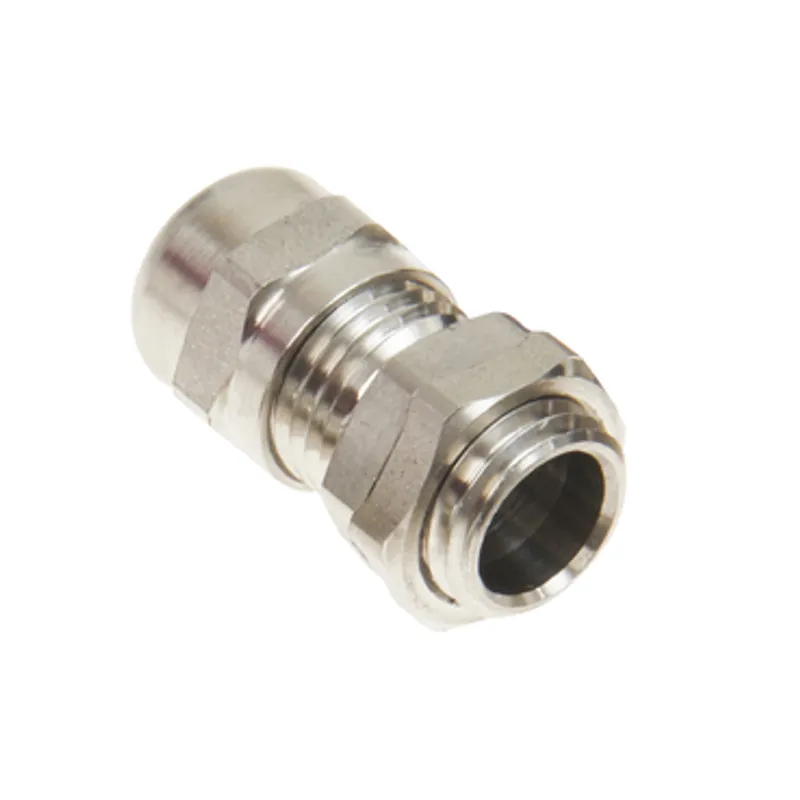

Set of cable gland + nut stainless steel M12 AISI304L, IP68, UL approved
Cable gland for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X enclosures The product is made of stainless steel AISI 304L body The height is 28mm This gland has a thread size of M12 and allows you to mount a cable into a pre-drilled hole The set contains 1 cable gland, 1 lock nut and 1 seal The cable gland is to be mounted on enclosure top and enclosure bottom Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments Flame resistance V2 conforming to UL 94 Ambient air temperature for operation -20-100 °C permanent and -40-150 °C intermittent Conforms with VDE certification
| Range | PanelSeT |
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure top, Enclosure bottom |
| Cable entry | Cable gland M12 |
| Device composition | 1 cable gland, 1 lock nut, 1 seal |
| Quantity per set | Set of 5 |
| Material | Body: stainless steel AISI 304L |
| Colour | Grey |
| Fixing mode | Screwed, By nut |
| Height | 28 mm |
| Net weight | 0.011 kg |
| Product certifications | VDE |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -40…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
| Package 1 | 1 PCE, 3.000 cm × 2.000 cm × 2.000 cm (L × W × H), 14.000 g |
| Package 2 | 100 CAR, 40.000 cm × 28.000 cm × 11.000 cm (L × W × H), 1.796 kg |
| Package 3 | 2400 P12, 120.000 cm × 80.000 cm × 47.000 cm (L × W × H), 58.000 kg |
