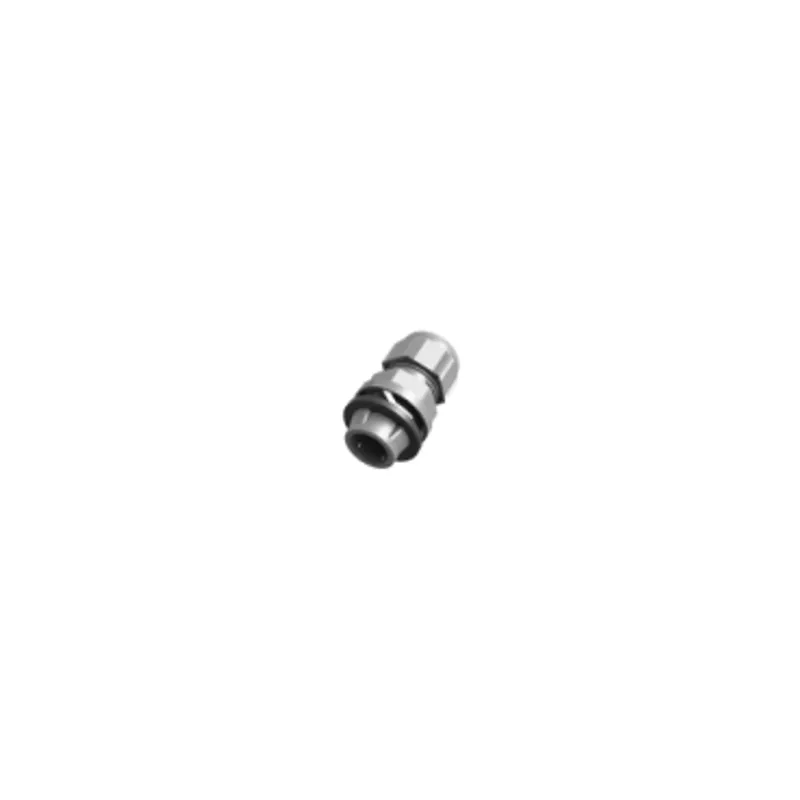

Cable gland SNAP-IN quick fixing M25, polyamide IP68 UL approved UV resistant
Cable gland for PanelSeT CRN, PanelSeT S3D, PanelSeT PLM and PanelSeT S3X enclosures The product is made of CR (chloroprene) seal and PA (polyamide) 6 body This gland has a thread size of M25 and allows you to mount a cable into a pre-drilled hole The set contains 1 cable gland and 1 seal The cable gland is to be mounted on enclosure bottom and enclosure top Ingress protection rating is IP68, ensuring the level of cable protection when using in harsh environments Flame resistance V2 conforming to UL 94 Ambient air temperature for operation -20-100 °C permanent and -30-150 °C intermittent Conforms with UL and VDE certification Conforms with UV resistant
| Range | PanelSeT |
| Product or component type | Cable gland |
| Accessory / separate part category | Cable management accessory |
| Range compatibility | PanelSeT PLM, PanelSeT S3D, PanelSeT S3X |
| Mounting location | Enclosure bottom, Enclosure top |
| Cable entry | Cable gland M25 |
| Device composition | 1 cable gland, 1 seal |
| Quantity per set | Set of 10 |
| Material | Seal: CR (chloroprene), Body: PA (polyamide) 6 |
| Colour | Grey (RAL 7035) |
| Fixing mode | Push and turn clockwise |
| Net weight | 0.022 kg |
| Product certifications | UL, VDE |
| Environmental characteristic | UV resistant |
| Flame retardance | V2 conforming to UL 94 |
| Ambient air temperature for operation | -20…100 °C permanent, -30…150 °C intermittent |
| IP degree of protection | IP68 conforming to IEC 60529 5 bar, 30 min |
| Package 1 | 1 PCE, 4.000 cm × 3.000 cm × 3.000 cm (L × W × H), 22.000 g |
| Package 2 | 20 CAR, 19.000 cm × 19.000 cm × 11.000 cm (L × W × H), 568.000 g |
| Package 3 | 2400 P12, 120.000 cm × 80.000 cm × 70.000 cm (L × W × H), 90.000 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
NSYCGSP25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYCGSP25 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCGSP25, subject to availability and destination.
