Schneider Electric NSYCCOTHI

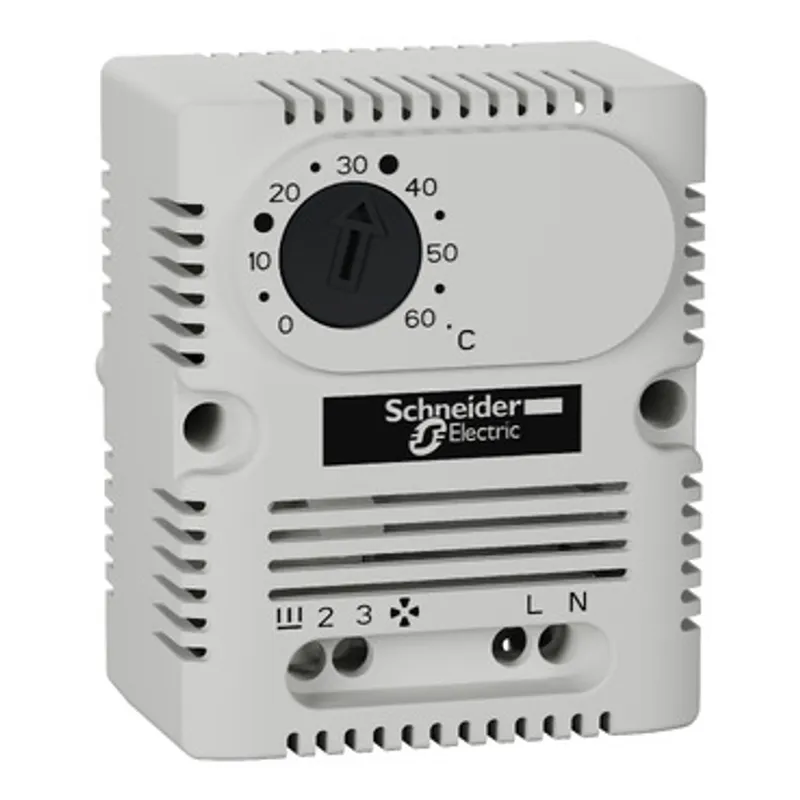

ClimaSys CC - thermostat 250V - range of temperature +5…60°C - 1 NO/NC - °C
- MPN
- NSYCCOTHI
- EAN
- 3606480152559
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCCOTHI?
Schneider Electric ClimaSys CC - thermostat 250V - range of temperature +5…60°C - 1 NO/NC - °C, manufacturer part number NSYCCOTHI. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Thermostat |
| Temperature setting range | 5…60 °C |
| Information displayed | Temperature in °C |
| Input voltage | 250 V |
| Sensor type | Bimetal |
| Contacts type and composition | 1 NO/NC |
| Contact resistance | 10 mOhm |
| Service life in cycles | 100000 cycles |
| Maximum switching capacity | 4 A 250 V AC inductive pf: 0.6, 30 W DC, 10 A 250 V AC inductive |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped |
| Height | External: 68 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Net weight | 100 g |
| Mounting location | Cross rails, On mounting plate, 35 mm DIN rail, Spacial upright |
| Ambient air temperature for operation | -20…80 °C |
| IP degree of protection | IP20 |
| Hysteresis | 7 K +/- 0.4K |
| Number of outputs | 1 heating function, 1 ventilation function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UL |
Packaging
| Package 1 | 1 PCE, 8.000 cm × 7.000 cm × 6.000 cm (L × W × H), 84.000 g |
| Package 2 | 75 CAR, 32.500 cm × 41.500 cm × 26.000 cm (L × W × H), 7.428 kg |
| Package 3 | 3000 P12, 120.000 cm × 80.000 cm × 198.000 cm (L × W × H), 311.000 kg |
