NSYCCOTHDClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C

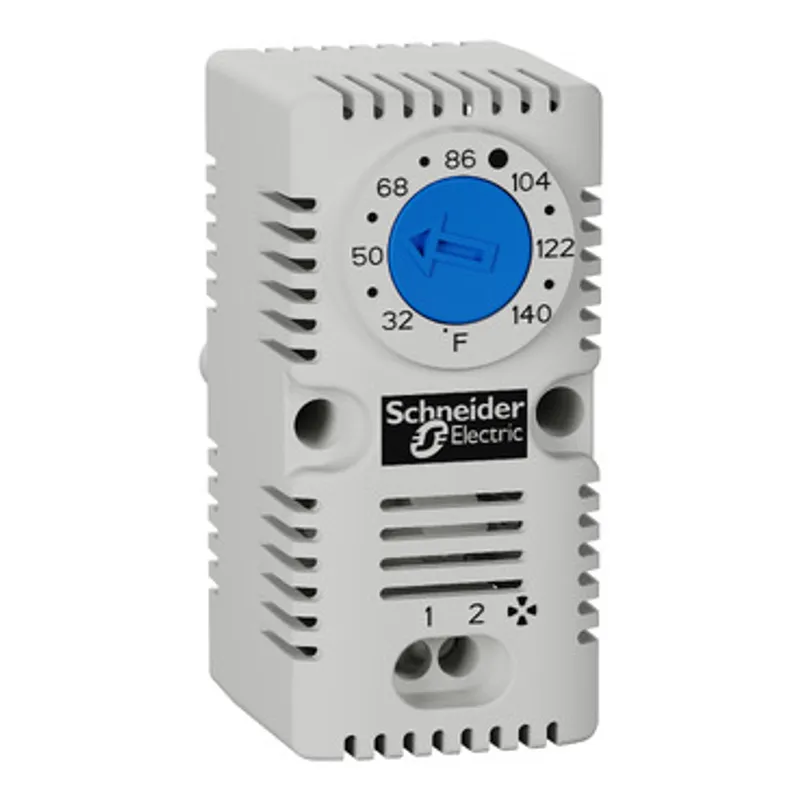

Schneider Electric NSYCCOTHOF
ClimaSys CC - simple thermostat 250V - range of temperature 0-60°C - NO - °F
- MPN
- NSYCCOTHOF
- EAN
- 3606480152535
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCCOTHOF?
Schneider Electric ClimaSys CC - simple thermostat 250V - range of temperature 0-60°C - NO - °F, manufacturer part number NSYCCOTHOF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Simple thermostat |
| Temperature setting range | 0…60 °C |
| Information displayed | Temperature in °F |
| Input voltage | 250 V |
| Sensor type | Bimetal |
| Contacts type and composition | NO |
| Contact resistance | 10 mOhm |
| Service life in cycles | 100000 cycles |
| Maximum switching capacity | 2 A 120...250 V AC inductive pf: 0.6, 10 A 250 V AC resistive, 15 A 120 V AC resistive, 30 W DC |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped |
| Height | External: 68 mm |
| Width | External: 33 mm |
| Depth | External : 44 mm |
| Net weight | 40 g |
| Mounting location | Spacial upright, 35 mm DIN rail, On mounting plate, Cross rails |
| Ambient air temperature for operation | -20…80 °C |
| IP degree of protection | IP20 |
| Hysteresis | 7 % |
| Number of outputs | 1 ventilation function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UL |
Packaging
| Package 1 | 1 PCE, 3.500 cm × 4.000 cm × 6.000 cm (L × W × H), 60.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCCOTHOF: frequently asked questions
When can NSYCCOTHOF be shipped?
NSYCCOTHOF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCCOTHOF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCCOTHOF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCCOTHOF, subject to availability and destination.
