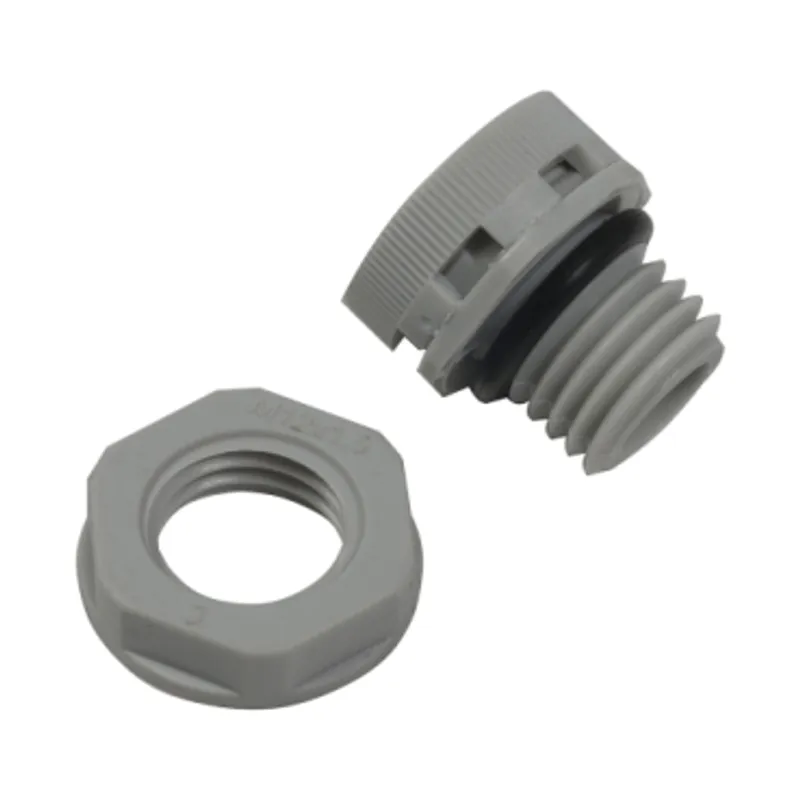

Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4 kg |
Shipping & availability
When can NSYCAG12LPH1 be shipped?
NSYCAG12LPH1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAG12LPH1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAG12LPH1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG12LPH1, subject to availability and destination.
Schneider Electric Sealed pressure balance valves IP68 ØM12 F16 liters/hour when 0,07 bar, manufacturer part number NSYCAG12LPH1. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | Thalassa Thalassa PLS, Thalassa Thalassa PLM, Thalassa Thalassa TBS, Thalassa Thalassa TBP |
| Product or component type | Pressure release valve |
| Accessory / separate part category | Thermal management accessory |
| Environmental characteristic | Water resistant |
| fixing mode | Screwed |
| Device composition | 1 valve |
| Quantity per set | Set of 10 |
| Material | Membrane: acrilic co-polymer, PA6 |
| Diameter | 11.5 mm |
| Height | 17.1 mm |
| Width | 18.3 mm |
| Flame retardance | V2 |
| Operating temperature | -40…150 °C |
| Permeability | 16 l/h |
| Pressure difference | < 1 bar |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.200 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 4.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.500 cm |
| Package 2 Width | 8.000 cm |
| Package 2 Length | 14.000 cm |
| Package 2 Weight | 40.000 g |
| Warranty | 18 months |
