Schneider Electric NSYBHS600
Horizontal bar support up to 3200 A 600 mm
- MPN
- NSYBHS600
- EAN
- 3606480062896
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBHS600?

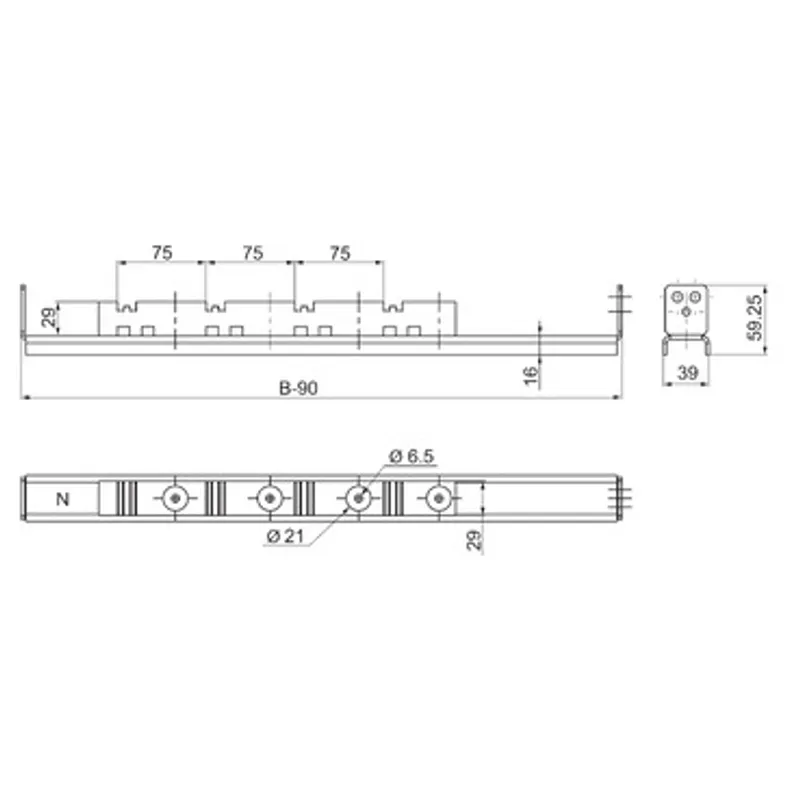

"This is an horizontal bar support compatible with PrismaSeT, PanelSeT and PanelSeT electrical enclosures. The support is prepared for fixing bars in horizontal position." "The busbar support fixing centers width is 510mm. The height and the depth are 59mm and 39mm respectively. The busbar distance is 75mm." The kit is made of plastic bar support and steel metal support. It is suitable for installation on the structure of enclosure on the vertical uprights, at any height, adjustable with a pitch of 25 mm. It can be fixed on vertical uprights. The kit contains fixing elements, 1 metal support and 2 insulating bar supports. "This product is qualified as a green premium, with minimal use of hazardous substances."
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Busbar accessory |
| Product or component type | Busbar support |
| Anwendung | Multi-purpose, Prisma application |
| Enclosure nominal dimensions | - |

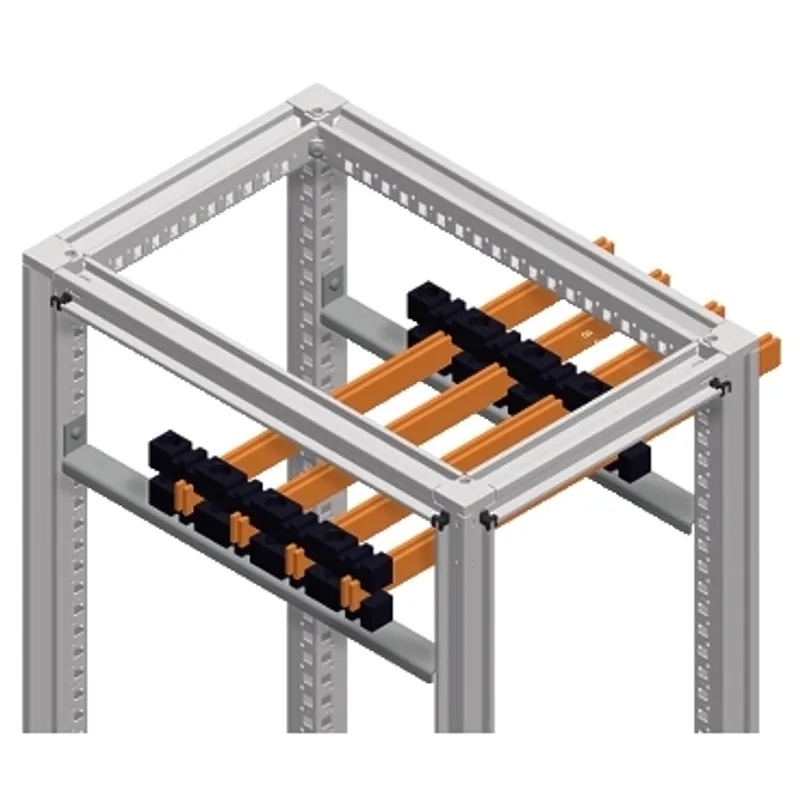

| Mounting location | On structure of enclosure |
| Mounting support | Vertical uprights |
| Busbar position | Horizontal |
| Range compatibility | PanelSeT PanelSeT SF, Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH, PanelSeT PanelSeT SFM, PanelSeT PanelSeT SFX |
| Cubicle-device connection | Linergy BS horizontal busbar - fixed |

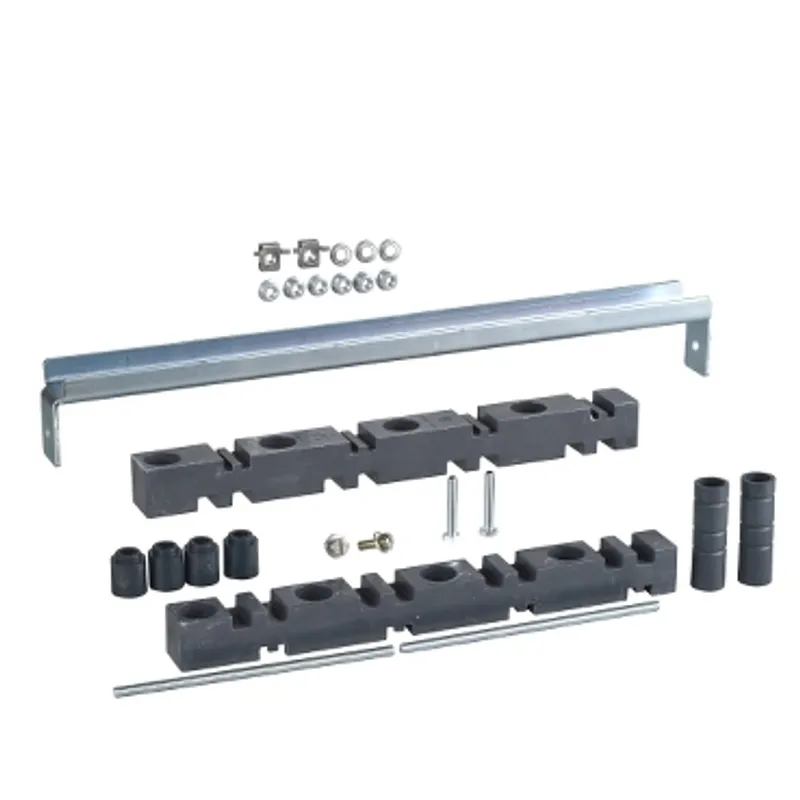

| Device composition | Fixing elements, 1 metal support, 2 insulating bar support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element |
| Height | 59.25 mm |
| Width | Fixing centers: 510 mm |
| Depth | 39 mm |
| [In] rated current | 3200 A |
Packaging
| Package 1 | 1 PCE, 51.500 cm × 12.000 cm × 6.000 cm (L × W × H), 1.682 kg |
| Package 2 | 100 P12, 120.000 cm × 80.000 cm × 48.000 cm (L × W × H), 190.000 kg |
