Schneider Electric NSYBF2U40P

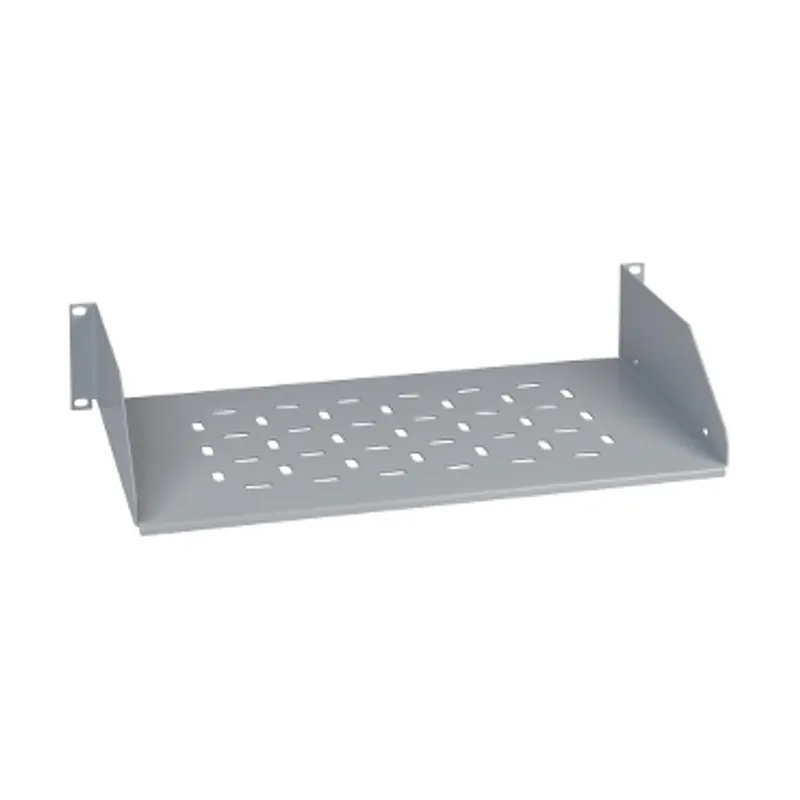

19" fixed shelf 2U on 2 uprights D400 with permissive load 20Kg
- MPN
- NSYBF2U40P
- EAN
- 3606480172731
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBF2U40P?
Fixed shelf 19" 2U for using with Actassi VDA and Actassi VDS Actassi enclosures Compatible with PanelSeT SF-S, SF-E, VDM, PLA enclosures Fixing to 19" rack, front or rear by 19" fixing element Can be used for electronic and multi-purpose applications Made of 5mm thick zinc coated sheet steel and painted in grey (RAL 7035) Anti-corrosion protection is ensured by epoxy-polyester powder coating The width is 465mm, height is 88,9mm and depth is 380mm Permanent permissable load is 20kg
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | Fixed shelf |
| Accessory / separate part type | Fixed perforated shelf |
| Device application | Electronic application, Multi-purpose |
| Colour | Grey (RAL 7035) |
| Range compatibility | Actassi VDA, Actassi VDS |
| Material | Sheet steel |
| Surface finish | Epoxy-polyester powder |
| Mounting support | 19" rack, front or rear |
| Product compatibility | PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
| Fixing mode | By 19" fixing element: 19" uprights of rack |
| Number of rack unit | 2U |
| Permanent permissible load | 20 kg |
| thickness | 5 mm |
| Number of units 19" | 2 |
| Height | 88.9 mm |
| Width | 465 mm |
| Depth | 380 mm |
Packaging
| Package 1 | 1 PCE, 51.000 cm × 39.000 cm × 10.000 cm (L × W × H), 2.882 kg |
| Package 2 | 48 P12, 120.000 cm × 80.000 cm × 91.000 cm (L × W × H), 149.500 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYBF2U40P: frequently asked questions
When can NSYBF2U40P be shipped?
NSYBF2U40P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBF2U40P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBF2U40P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBF2U40P, subject to availability and destination.
