Schneider Electric NSYBHS500
Horizontal bar support up to 3200 A 500 mm
- MPN
- NSYBHS500
- EAN
- 3606480062889
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBHS500?
"This is an horizontal bar support compatible with PrismaSeT, PanelSeT and PanelSeT electrical enclosures. The support is prepared for fixing bars in horizontal position." "The busbar support fixing centers width is 410mm. The height and the depth are 59mm and 39mm respectively. The busbar distance is 75mm." The kit is made of plastic bar support and steel metal support. It is suitable for installation on the structure of enclosure on the vertical uprights, at any height, adjustable with a pitch of 25 mm. It can be fixed on vertical uprights. The kit contains fixing elements, 1 metal support and 2 insulating bar supports. "This product is qualified as a green premium, with minimal use of hazardous substances."
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Busbar accessory |
| Product or component type | Busbar support |
| Anwendung | Multi-purpose, Prisma application |
| Enclosure nominal dimensions | - |
| Mounting location | On structure of enclosure |
| Mounting support | Vertical uprights |
| Busbar position | Horizontal |
| Range compatibility | PanelSeT PanelSeT SF, Linergy Linergy BS, Prisma Prisma PH, PanelSeT PanelSeT SFX |
| Cubicle-device connection | Linergy BS horizontal busbar - fixed |

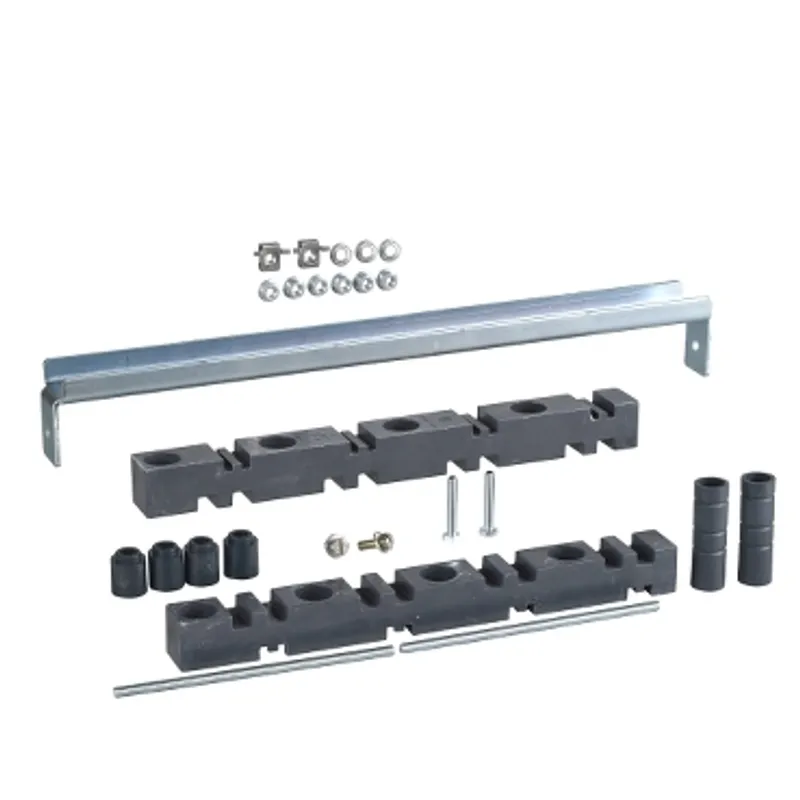

| Device composition | Fixing elements, 1 metal support, 2 insulating bar support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element |
| Height | 59.25 mm |
| Width | Fixing centers: 410 mm |
| Depth | 39 mm |
| [In] rated current | 3200 A |
Packaging
| Package 1 | 1 PCE, 42.000 cm × 10.000 cm × 7.000 cm (L × W × H), 1.492 kg |
| Package 2 | 20 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 29.840 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYBHS500: frequently asked questions
When can NSYBHS500 be shipped?
NSYBHS500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBHS500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBHS500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBHS500, subject to availability and destination.
