Schneider Electric NSYBCE16
Brush-type cable entry gasket, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1600mm , set of 2
- MPN
- NSYBCE16
- EAN
- 3606485130026
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

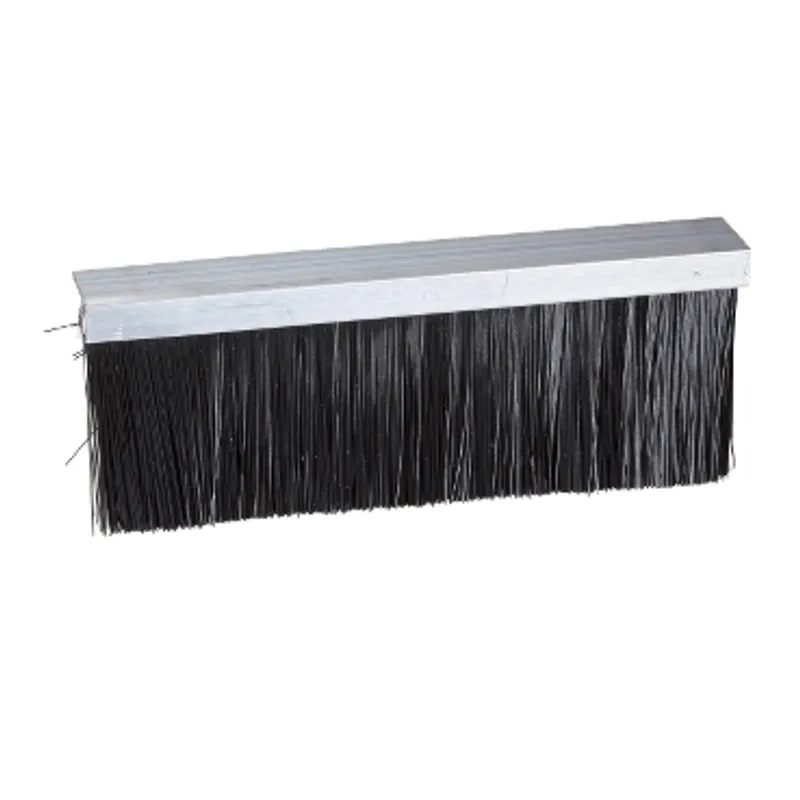

What is the Schneider Electric NSYBCE16?
This is a brush-type flexible cable entry gasket suitable for PanelSeT SFN and PanelSeT SF electrical enclosures. It is suitable for enclosures with a width of 1600mm and is designed to be easily attached to the cable gland plate using a clipping mechanism. Its is compatible with plates with 1 or 2 entries. The product is made of plastic. The nominal width is 1000mm and the real width is 855mm. The height and the depth are 40mm and 25mm respectively. The kit contains 2 gaskets.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Brush gasket |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF suitable enclosure |
| Device composition | 2 gasket |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate |
| cable entry | 1 or 2 entries |
| Fixing mode | Clipped |
| Height | 40 mm |
| Width | Nominal: 1600 mm, Real: 705 mm |
| Depth | 25 mm |
Packaging
| Package 1 | 1 PCE, 74.000 cm × 10.000 cm × 7.000 cm (L × W × H), 716.000 g |
| Package 2 | 100 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 82.000 kg |
