Schneider Electric
NSYBCE10Brush-type cable entry gasket, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1000mm , set of 2
Schneider Electric NSYBCE8
Brush-type cable entry gasket, PanelSeT SFN, PanelSeT SF, for electrical enclosure W800mm , set of 2
- MPN
- NSYBCE8
- EAN
- 3606485130064
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

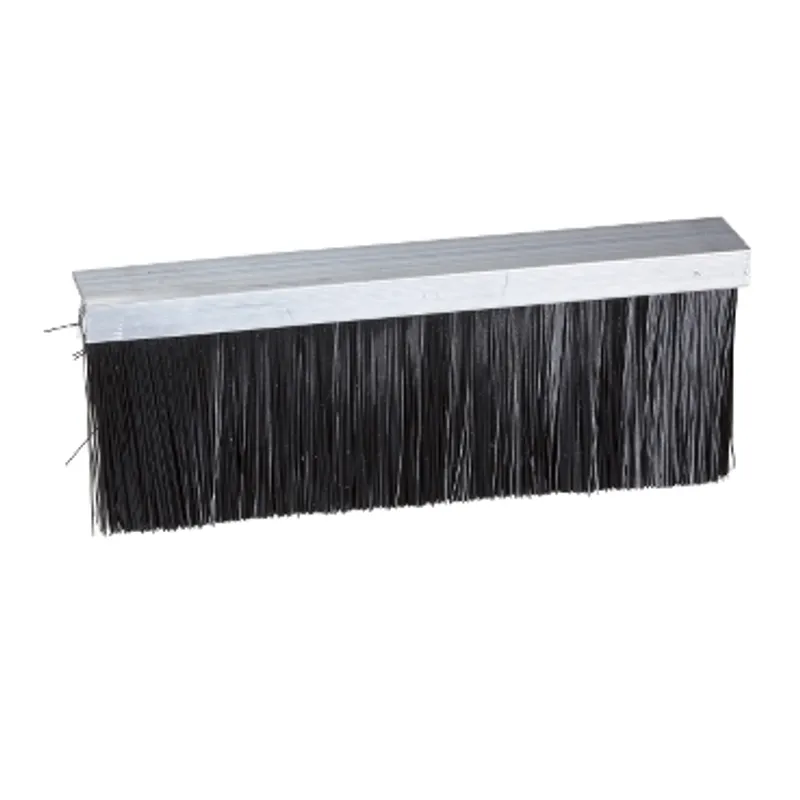

What is the Schneider Electric NSYBCE8?
This is a brush-type flexible cable entry gasket suitable for PanelSeT SFN and PanelSeT SF electrical enclosures. It is suitable for enclosures with a width of 800mm and is designed to be easily attached to the cable gland plate using a clipping mechanism. Its is compatible with plates with 1 or 2 entries. The product is made of plastic. The nominal width is 1000mm and the real width is 855mm. The height and the depth are 40mm and 25mm respectively. The kit contains 2 gaskets.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Brush gasket |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF suitable enclosure |
| Device composition | 2 gasket |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate |
| cable entry | 1 or 2 entries |
| Fixing mode | Clipped |
| Height | 70 mm |
| Width | Nominal: 800 mm, Real: 735 mm |
| Depth | 25 mm |
Packaging
| Package 1 | 1 PCE, 74.000 cm × 8.000 cm × 7.000 cm (L × W × H), 430.000 g |
| Package 2 | 100 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 57.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYBCE8: frequently asked questions
When can NSYBCE8 be shipped?
NSYBCE8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBCE8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBCE8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBCE8, subject to availability and destination.
