Schneider Electric NSYBBT1U80P
Actassi - perforated tray - 1U - depth 1000 mm
- MPN
- NSYBBT1U80P
- EAN
- 3606480172496
- Category
- Actassi for Europe
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBBT1U80P?
Telescopic perforated shelf 19" 1U for using with Actassi VDS and Actassi VDA Actassi enclosures Fixing by attachment without tools between the front and rear 19" uprights Made of zinc coated sheet steel and painted in grey (RAL 7035) The width is 430mm, height is 43mm and depth is 800mm
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | Telescopic perforated shelf |
| Accessory / separate part category | Support accessory |
| Colour | Grey (RAL 7035) |
| Quantity per set | 1 piece |
| Range compatibility | Actassi VDS, Actassi VDA |
| Material | Sheet steel |
| Mounting location | Between the front and rear 19" uprights |
| Fixing mode | Direct fixing |
| Number of rack unit | 1U |
| Permanent permissible load | 45 kg |
| Distance between centers | 658 mm |
| Enclosure/cubicle description | Enclosure width: 600 mm depth: 1000 mm height: 1200 mm, Enclosure width: 600 mm depth: 1000 mm height: 1800 mm, Enclosure width: 600 mm depth: 1000 mm height: 2000 mm, Enclosure width: 600 mm depth: 1000 mm height: 2200 mm, Enclosure width: 800 mm depth: 1000 mm height: 1200 mm, Enclosure width: 800 mm depth: 1000 mm height: 1800 mm, Enclosure width: 800 mm depth: 1000 mm height: 2000 mm, Enclosure width: 800 mm depth: 1000 mm height: 2200 mm |
| Height | 43 mm |
| Width | 430 mm |
| Depth | 800 mm |
Packaging
| Package 1 | 1 PCE, 81.000 cm × 47.000 cm × 5.000 cm (L × W × H), 6.740 kg |
| Package 2 | 32 PAM, 120.000 cm × 100.000 cm × 90.000 cm (L × W × H), 232.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYBBT1U80P: frequently asked questions
When can NSYBBT1U80P be shipped?
NSYBBT1U80P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBBT1U80P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBBT1U80P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBBT1U80P, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
NSYBCE10Brush-type cable entry gasket, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1000mm , set of 2
Schneider Electric

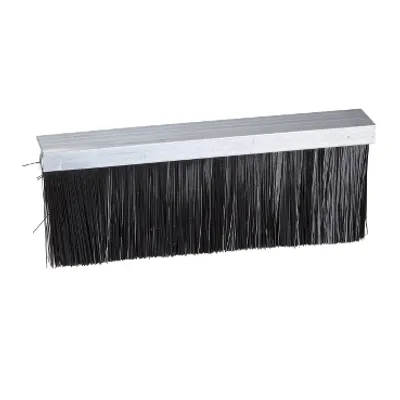

NSYBCE12Brush-type cable entry gasket, PanelSeT SFN, PanelSeT SF, for electrical enclosure W1200mm , set of 2
