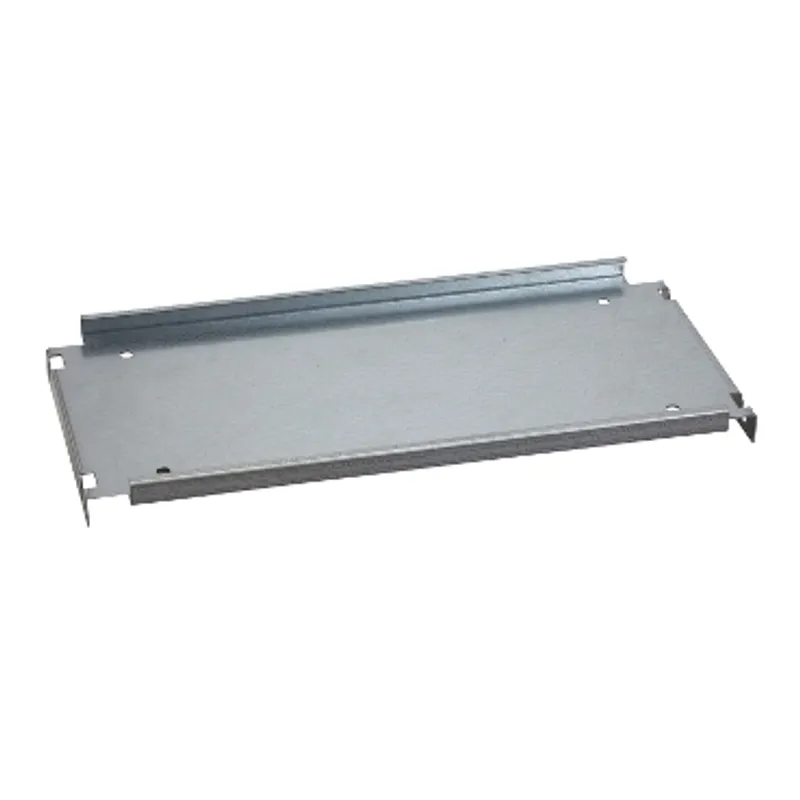

Horizontal support plate for PLA enclosure W500xD320mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.67 kg |
Shipping & availability
When can NSYBANPLA53 be shipped?
NSYBANPLA53 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBANPLA53 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBANPLA53 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBANPLA53, subject to availability and destination.
Schneider Electric Horizontal support plate for PLA enclosure W500xD320mm, manufacturer part number NSYBANPLA53. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Support |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting support | Vertical uprights, for installation of one or several support plates |
| Range compatibility | PanelSeT PLA |
| Device composition | Fixing elements, 1 plate |
| Material | Galvanised steel |
| Adjustment | Adjustable in height every 50 mm for uprights |
| Maximum load | 60 kg |
| Height | 18 mm |
| Width | 458 mm |
| Depth | 240 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 22.500 cm |
| Package 1 Length | 46.000 cm |
| Package 1 Weight | 1.670 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 33.400 kg |
| Warranty | 18 months |
