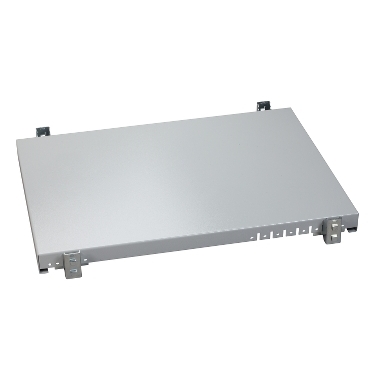

Schneider Electric NSYBBF1U40
Actassi - plain tray - 1U - depth 600 mm
- MPN
- NSYBBF1U40
- EAN
- 3606480172410
- Category
- Actassi for Europe
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBBF1U40?
Fixed plain shelf 19" 1U for using with Actassi VDS and Actassi VDA Actassi enclosures Made of zinc coated sheet steel and painted in grey (RAL 7035) The depth is 600mm 800mm 1000mm Fixing centre-to-centre distance is 258mm, adjustable from -100 to + 50mm, in steps of 25mm Permanent permissable load is 100kg Permanent permissable load is 100kg
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | Fixed plain shelf |
| Accessory / separate part category | Support accessory |
| Colour | Grey (RAL 7035) |
| Range compatibility | Actassi VDS, Actassi VDA |
| Material | Sheet steel |
| Mounting location | Between the front and rear 19" uprights |
| Fixing mode | Direct fixing |
| Number of rack unit | 1U |
| Adjustment | Adjustable from -100 to + 50 mm, in steps of 25 mm |
| Permanent permissible load | 100 kg |
| Distance between centers | 258 mm |
| Depth | Rack : 600 mm, Rack : 800 mm, Rack : 1000 mm |
Packaging
| Package 1 | 1 PCE, 5.000 cm × 41.000 cm × 47.000 cm (L × W × H), 3.380 kg |
| Package 2 | 60 PAM, 120.000 cm × 100.000 cm × 85.000 cm (L × W × H), 214.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYBBF1U40: frequently asked questions
When can NSYBBF1U40 be shipped?
NSYBBF1U40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYBBF1U40 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYBBF1U40 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYBBF1U40, subject to availability and destination.
