Schneider Electric NSYAVD1U480

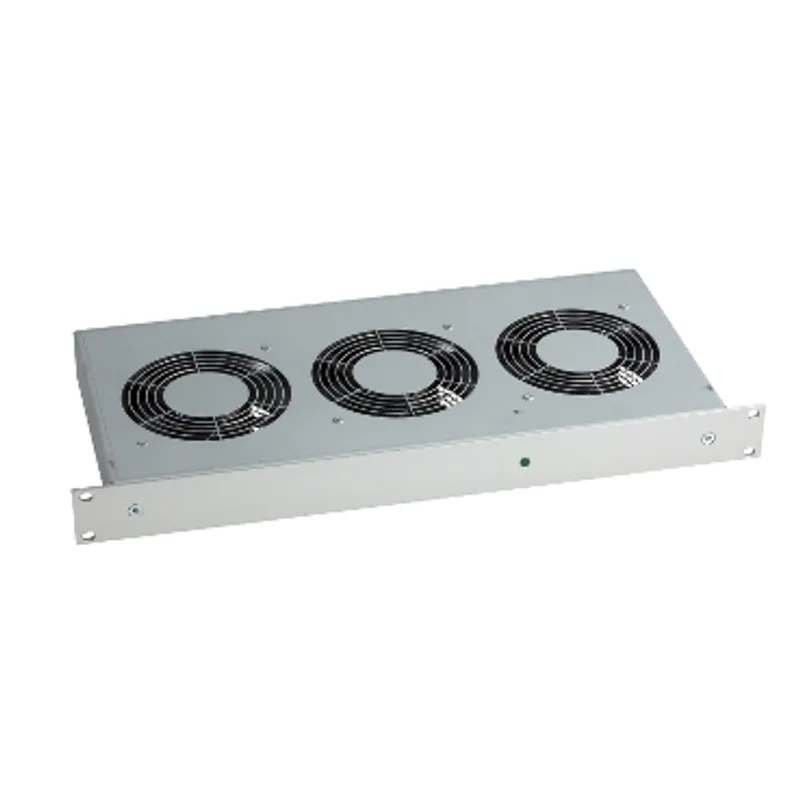

Actassi - mixing drawer - 43 dB - 486 m3/h
- MPN
- NSYAVD1U480
- EAN
- 3606480173875
- Category
- ClimaSys CV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAVD1U480?
Actassi mixing drawer fan 486 m3/h 1U for using in Actassi enclosures This mixing drawer fan has rated voltage of 230-230 V AC with rated power of 45W The noise level is 43 dB The width is 230mm, height is 530mm and depth is 60mm The product includes 3 fan units Operation LED indicator is mounted on frontal panel Delivered without cable Equipped with 1 led switch On/Off Includes 1 blanking plate Net weight is 3,3kg
Specifications
Specifications
| Range of product | Actassi |
| Product or component type | Mixing drawer |
| Accessory / separate part category | Thermal management |
| Air flow | 486 m3/h |
| Device composition | 3 fan |
| Rated voltage | 230 V AC |
| Rated power in W | 45 W |
| Display type | LED |
| Type of cooling | Integrated fan |
| Number of rack unit | 1U |
| Height | 530 mm |
| Width | 230 mm |
| Depth | 60 mm |
| Net weight | 3.3 kg |
| Noise level | 43 dB |
Packaging
| Package 1 | 1 PCE, 53.000 cm × 22.000 cm × 5.000 cm (L × W × H), 3.634 kg |
| Package 2 | 5 CAR, 60.000 cm × 40.000 cm × 20.000 cm (L × W × H), 19.222 kg |
| Package 3 | 80 P12, 120.000 cm × 80.000 cm × 124.000 cm (L × W × H), 330.552 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYAVD1U480: frequently asked questions
When can NSYAVD1U480 be shipped?
NSYAVD1U480 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAVD1U480 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAVD1U480 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAVD1U480, subject to availability and destination.
