Schneider Electric NSYAMPA1916TB

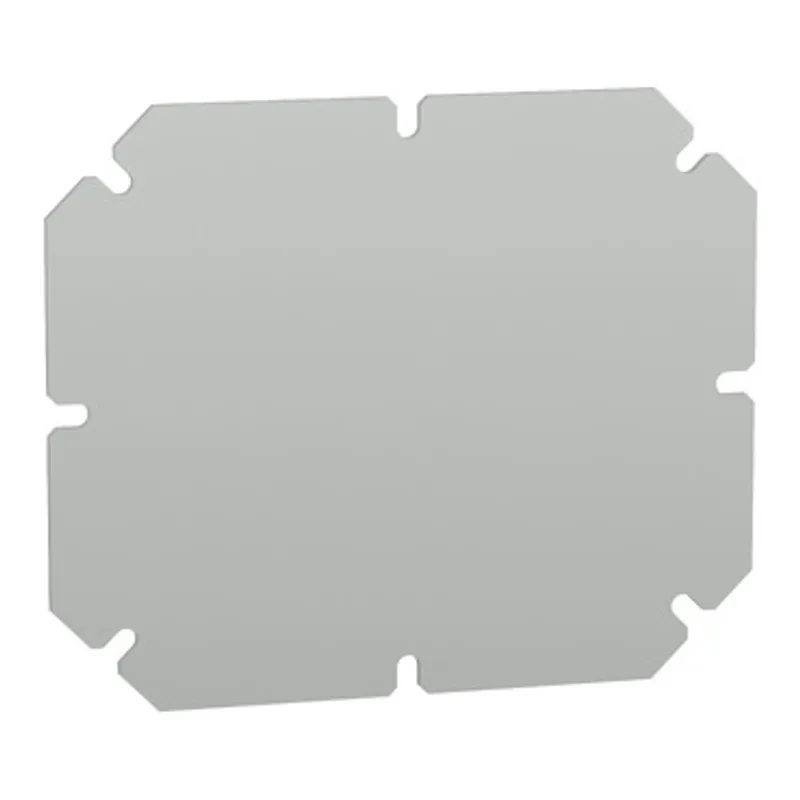

Insulating mounting plate, thickness 3 mm, For boxes of H175W150 mm

MPN
NSYAMPA1916TB
EAN
3606480166129
Category
PanelSeT TBP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYAMPA1916TB?

PanelSeT TBS and TBP Insulating mounting plate. For boxes H 175 x W 150 mm. Multi-purpose application, mounting accessory. Thickness 3 mm. Fixing by screws type M4 self tapping, on back studs location. Polyester made.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeMounting plate
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBack studs
Mounting plate descriptionInsulating
Range compatibilityPanelSeT TBS, PanelSeT PanelSeT TBP
Device composition1 mounting plate
MaterialPolyester
ColourGrey
Fixing modeBy screws - screw type M4 self tapping - on back studs location
HeightNominal: 192 mm, Real: 140 mm
WidthNominal: 164 mm, Real: 1685 mm
thickness3 mm
Net weight0.1 kg

Packaging

Package 11 PCE, 17.000 cm × 14.000 cm × 0.300 cm (L × W × H), 114.000 g
Package 2300 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 39.400 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYAMPA1916TB: frequently asked questions

When can NSYAMPA1916TB be shipped?

NSYAMPA1916TB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYAMPA1916TB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYAMPA1916TB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAMPA1916TB, subject to availability and destination.
