Schneider Electric NSYAEUBU61SC

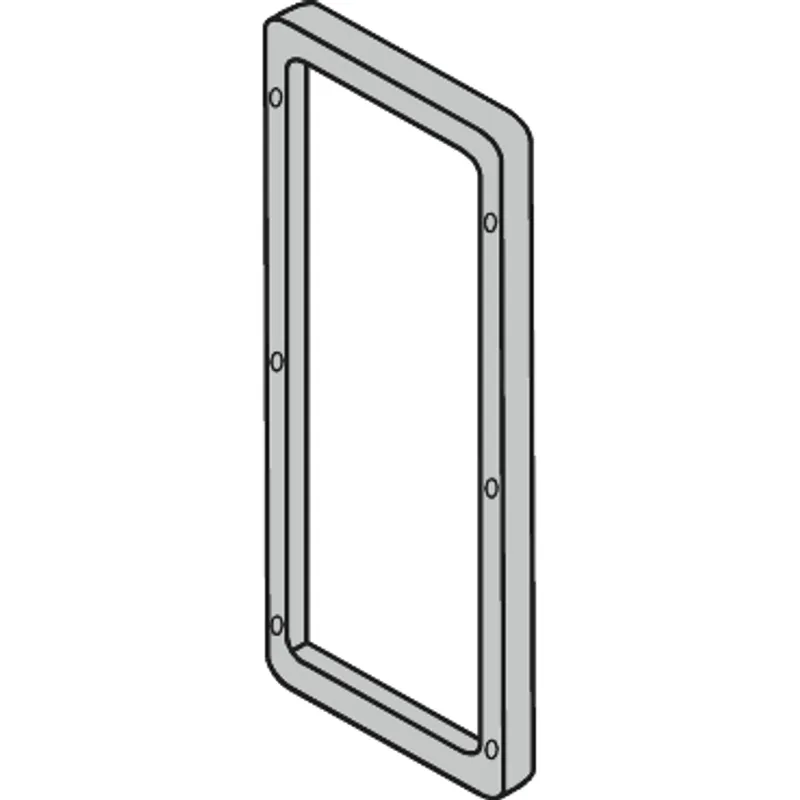

Frame : 635x185mm for sidebyside mounting of WM encl. from H600 and D300mm.IP 66

MPN
NSYAEUBU61SC
EAN
3606480198953
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYAEUBU61SC?

Coupling frame for PanelSeT S3D compact enclosure and PanelSeT CRN compact enclosure enclosures The coupling frame is made from polyester charged with fibreglass The width is 185mm The height is 635mm The depth is 19,5mm Fixed on side coupling of 2 enclosures by screw The kit is made of 1 coupling frame and fixing elements Suitable for multi-purpose applications Net weight is 1,3kg Ingress protection rating is IP66

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryCoupling accessory
Product or component typeCoupling frame
AnwendungMulti-purpose
Mounting locationSide coupling of 2 enclosures
Range compatibilityPanelSeT S3D compact enclosure, PanelSeT CRN PanelSeT CRN compact enclosure
Device composition1 coupling frame, fixing elements
Quantity per setSet of 1
MaterialCoupling frame: polyester charged with fibreglass
Net weight1.3 kg
Fixing modeBy screw
Height635 mm
Width185 mm
Depth19.5 mm
IP degree of protectionIP66
Mounting diameter0 mm, 6 mm

Packaging

Package 11 PCE, 4.000 cm × 20.000 cm × 65.500 cm (L × W × H), 1.030 kg
Package 225 P12, 120.000 cm × 80.000 cm × 32.000 cm (L × W × H), 37.750 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYAEUBU61SC: frequently asked questions

When can NSYAEUBU61SC be shipped?

NSYAEUBU61SC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYAEUBU61SC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYAEUBU61SC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAEUBU61SC, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYAELYTCRXG8 – Set of 2 lifting eyes M8 - Stainless steel
Schneider Electric
NSYAELYTCRXG8

Set of 2 lifting eyes M8 - Stainless steel

Schneider Electric NSYAELZ – 2 external mounting doble bar locks for ZZ plinth of PLAZ enclosure
Schneider Electric
NSYAELZ

2 external mounting doble bar locks for ZZ plinth of PLAZ enclosure

Schneider Electric NSYAEPZM – Rubber gasket for IP 54 of ZM plinths for PLM enclosure
Schneider Electric
NSYAEPZM

Rubber gasket for IP 54 of ZM plinths for PLM enclosure

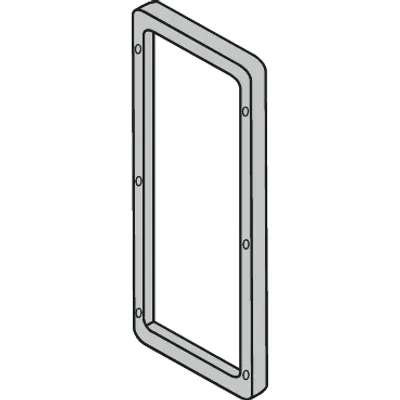

Schneider Electric NSYAEUBU41SC – Frame: 435x185mm, for sidebyside mounting of WM encl. from H600 and D300mm. IP66
