Schneider Electric METSEPM89M0024
PowerLogic PM8000 - I/O Module - Analogue - 4 inputs + 2 outputs
- MPN
- METSEPM89M0024
- EAN
- 3606480702006
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

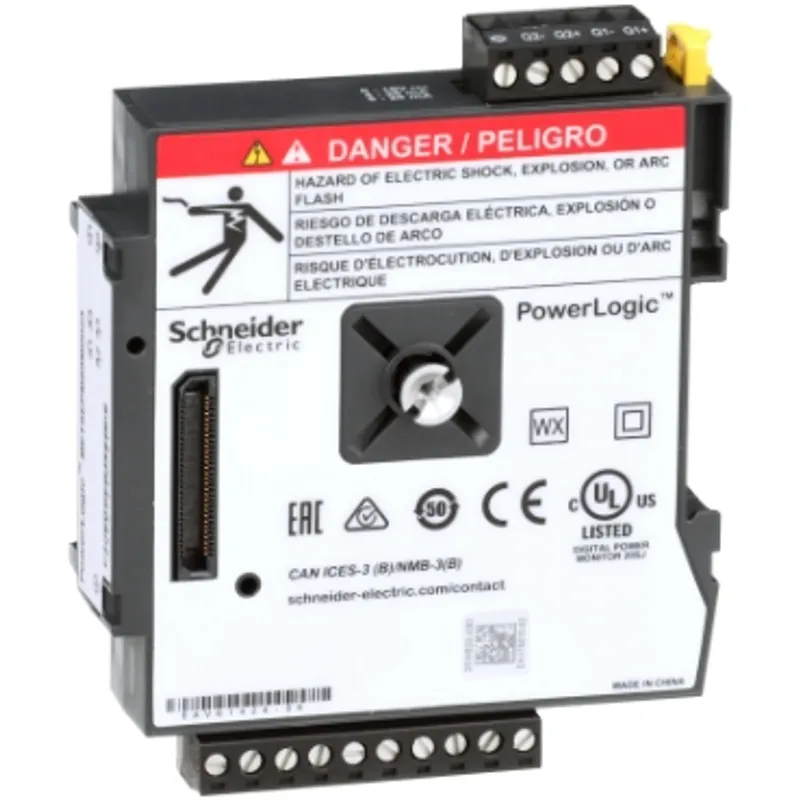

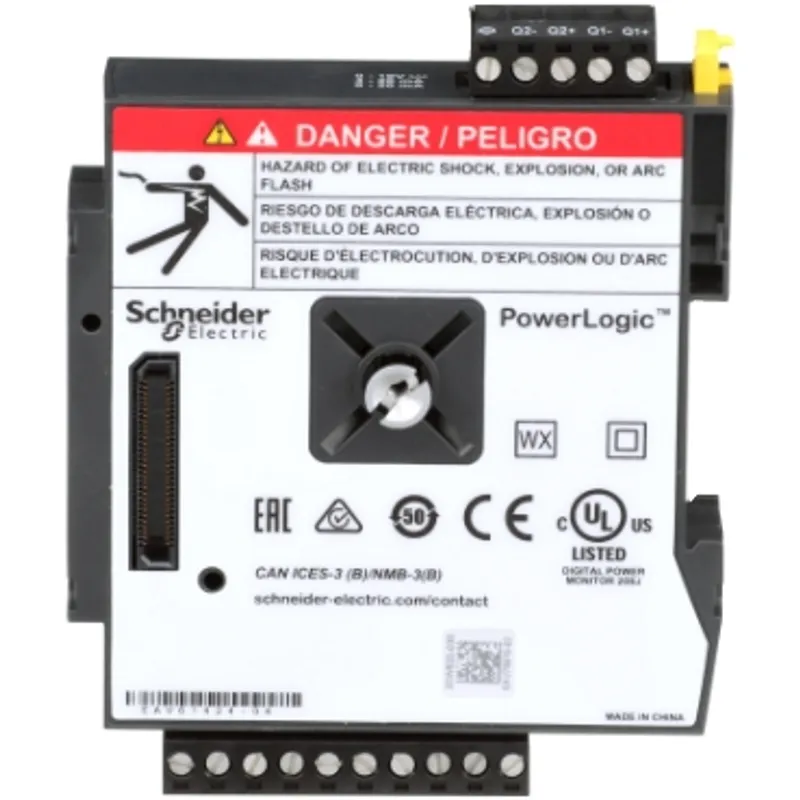

What is the Schneider Electric METSEPM89M0024?

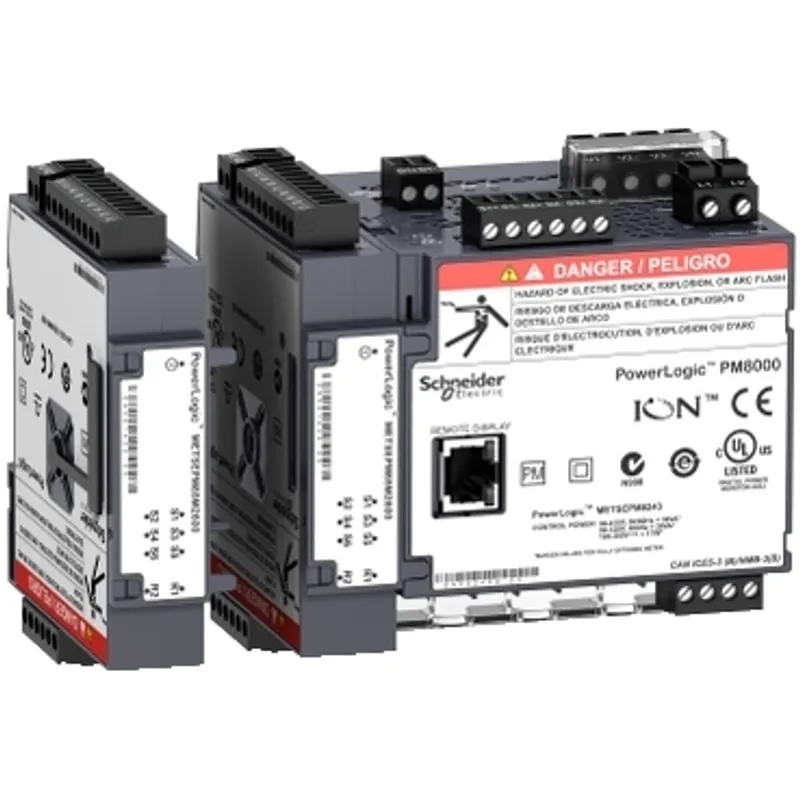

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional analog inputs and analog outputs. This analog module provides 4 analog inputs that support 0 to 20mA, 4 to 20mA and 0 to 30V. Plus 2 analog outputs to interface with BMS and other systems. The analog outputs support 0 to 20mA, 4 to 20mA and 0 to 10V. Analog inputs and outputs are sampled by the host meter at a 1/2 cycle (8-10ms) rate. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | I/O module |
| Device application | Optional expansion module |
| Range compatibility | PowerLogic PowerLogic PM8000, PowerLogic PowerLogic ION7400, PowerLogic PowerLogic ION9000 |
| Number of outputs | 2 analog, 0-20 mA or 4-20 mA or 0...10 V |
| Number of inputs | 4 analog 0...20 mA/4...20 mA 0...30 V |
| Width | 22 mm |
| Depth | 90.5 mm |
| Height | 90.5 mm |
| Net weight | 140 g |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| IP degree of protection | IP30 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 10.000 cm × 6.000 cm (L × W × H), 220.000 g |
| Package 2 | 15 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.755 kg |
