Schneider Electric METSEPMFIBER
PowerLogic PM8000 - Communication Module - Fiber-Ethernet module
- MPN
- METSEPMFIBER
- EAN
- 3606481041722
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric METSEPMFIBER?

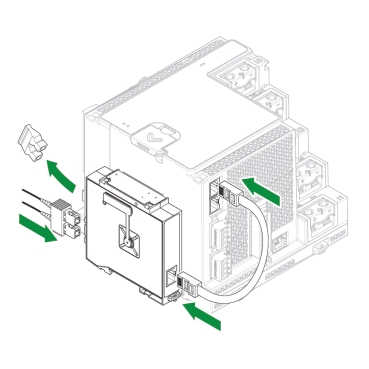

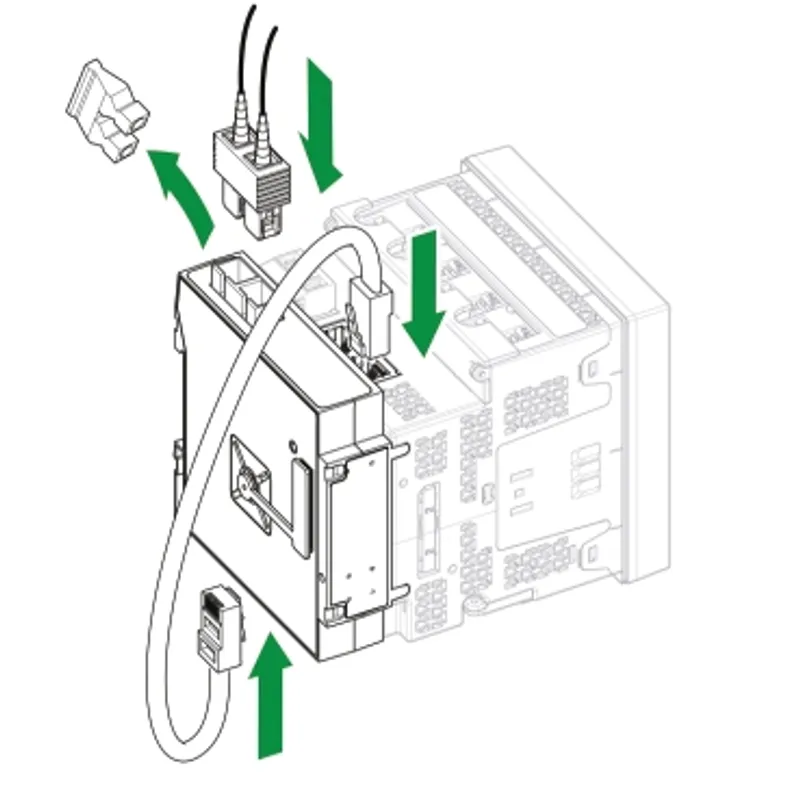

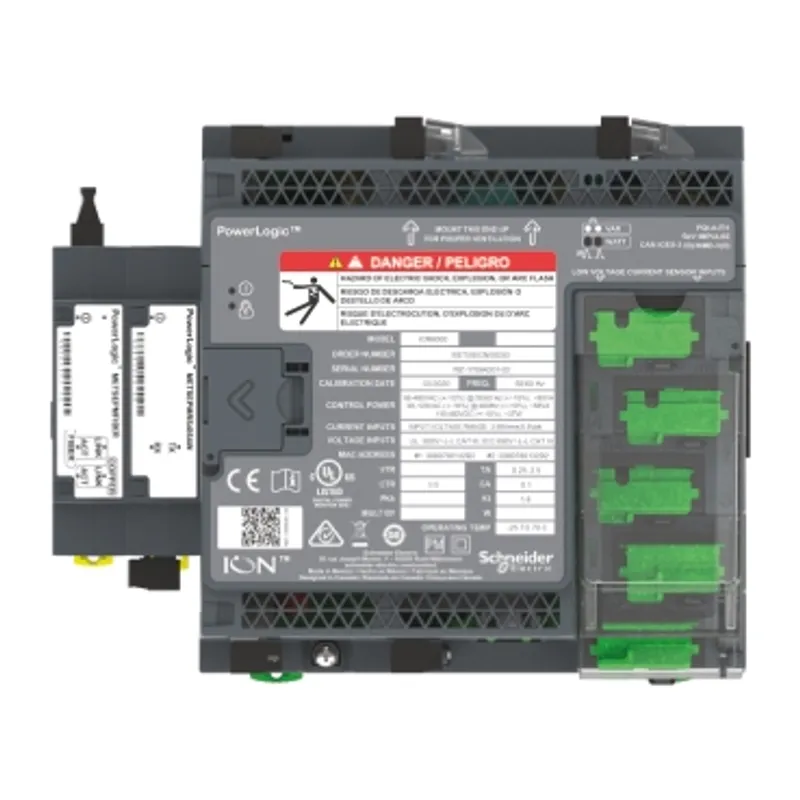

This device is an optional module for advanced meter that provide fiber optic SC-duplex connectivity, converted from the onboard Ethernet port. The Fiber-Ethernet option module can further increase our Advanced Meters flexibility by adding an additional communication port. Provides isolated data transmission through fiber optics up to the length of 2000 m. The module is directly powered from the base meter. This module enables data transfer through fiber optics medium, and offer reliable, and insulated data transmission. It supports multi-mode 100BASE-FX technology and requires SC duplex connector input. Only 1 Fiber-Ethernet module is supported per meter. The dimensions are 22 mm in width, 100.2 mm in height 100.2 mm, 90.5mm in depth 90.5 mm and 102.33 g in weight: 102.33 g. This module hooks itself up to the meter's option bus which has a capacity of maximum one fiber-Ethernet module plus 3 other options. It is connected to the base meter with the help of Ethernet patch cable which is included in the module packaging. Single unit in the packet. Compatible with PowerLogic Advanced Metering range (ION7400, PM8000, and ION9000).
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Communication module |
| Device application | Optional expansion module |
| Range compatibility | PowerLogic PowerLogic ION9000 energy and power quality meter, PowerLogic PowerLogic ION7400 power meter, PowerLogic PowerLogic PM8000 power meter |
| Communication port protocol | Modbus, ION, DNP3, DLMS, IEC 61850 |
| Port Ethernet | 100BASE-FX |
| Communication port support | SC: fiber optic |

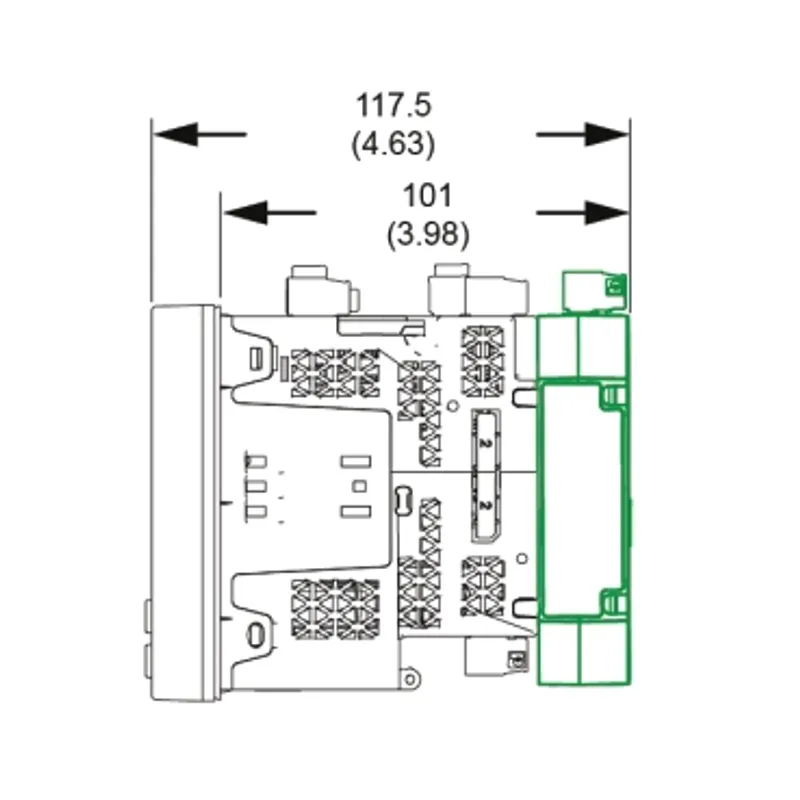

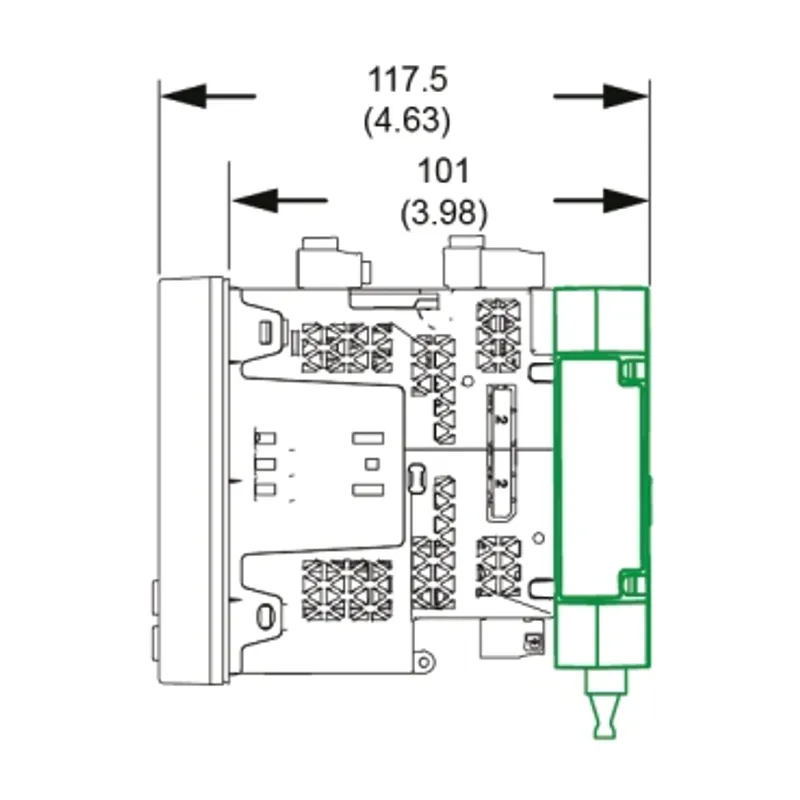

| Width | 22 mm |
| Depth | 90.5 mm |
| Height | 100.2 mm |
| Net weight | 119.3 g |
Packaging
| Package 1 | 1 PCE, 13.0 cm × 10.0 cm × 5.0 cm (L × W × H), 174.69 g |
| Package 2 | 15 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 2.935 kg |
