Schneider Electric METSECT5GG100

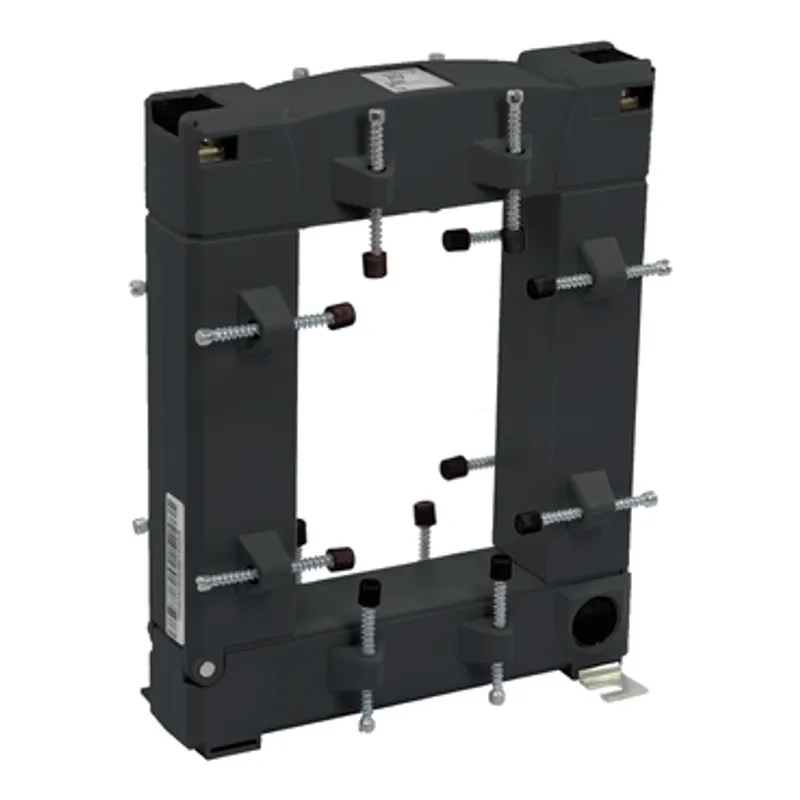

PowerLogic Split Core Current Transformer - Type GG, for bar - 1000A / 5A

MPN
METSECT5GG100
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric METSECT5GG100?

This current transformer, standard for busbar, has a line rated current of 1000 A and a secondary current rating of 5 A. This current transformer do have a 85 mm x 125 mm opening. Compatible with a single output for bar: 80 mm x 120 mm. Burden and accuracy class as follows: class 0.5 maximum power: 5 VA.

Specifications

Specifications

RangePowerLogic
Product nameCT
Product or component typeCurrent transformer
Secondary current5 A
Accuracy classClass 0.5 at 5 VA
[In] rated current1000 A
Current transformer typeStandard for busbar, Split core
Current transformer ratio1000/5
[Ith] conventional free air thermal current1000 A
Maximum safety factor5
Permissible current60000 A during 1 s
[Ue] rated operational voltage< 720 V 50 Hz
[Ui] rated insulation voltage3 kV
Mounting modeBy screws
Mounting supportDIN rail, Fastened onto a surface with screws
WidthOutside: 155 mm, Inner: 85 mm
HeightOutside: 198.15 mm, Inner: 125 mm
Depth58 mm
Electrical insulation classClass E
Opening of bars80 x 120
StandardsVDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2
Ambient air temperature for operation-5…40 °C
Ambient air temperature for storage-25…70 °C

Packaging

Package 11 PCE, 20.0 cm × 16.0 cm × 6.5 cm (L × W × H), 1.528 kg
Package 28 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 12.5 kg
