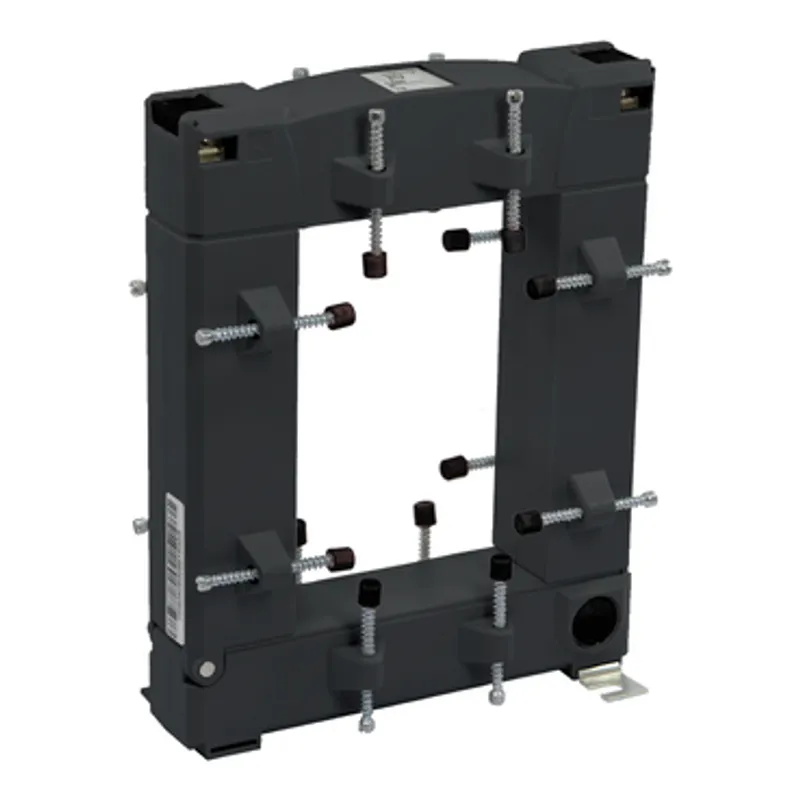

PowerLogic Split Core Current Transformer - Type GG, for bar - 0600A / 5A
This current transformer, standard for busbar, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 85 mm x 125 mm opening. Compatible with a single output for bar: 80 mm x 120 mm. Burden and accuracy class as follows: class 0.5 maximum power: 2.5 VA.
| Range | PowerLogic |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 2.5 VA |
| [In] rated current | 600 A |
| Current transformer type | Standard for busbar, Split core |
| Current transformer ratio | 600/5 |
| [Ith] conventional free air thermal current | 600 A |
| Maximum safety factor | 5 |
| Permissible current | 36000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | By screws |
| Mounting support | DIN rail, Fastened onto a surface with screws |
| Width | Outside: 155 mm, Inner: 85 mm |
| Height | Outside: 198.15 mm, Inner: 125 mm |
| Depth | 58 mm |
| Electrical insulation class | Class E |
| Opening of bars | 80 x 120 |
| Standards | VDE 0414, DIN 42600-2, DIN EN 61869-1, DIN EN 61869-2 |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -25…70 °C |
| Package 1 | 1 PCE, 20.0 cm × 16.0 cm × 6.5 cm (L × W × H), 1.46 kg |
| Package 2 | 8 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 12.04 kg |
