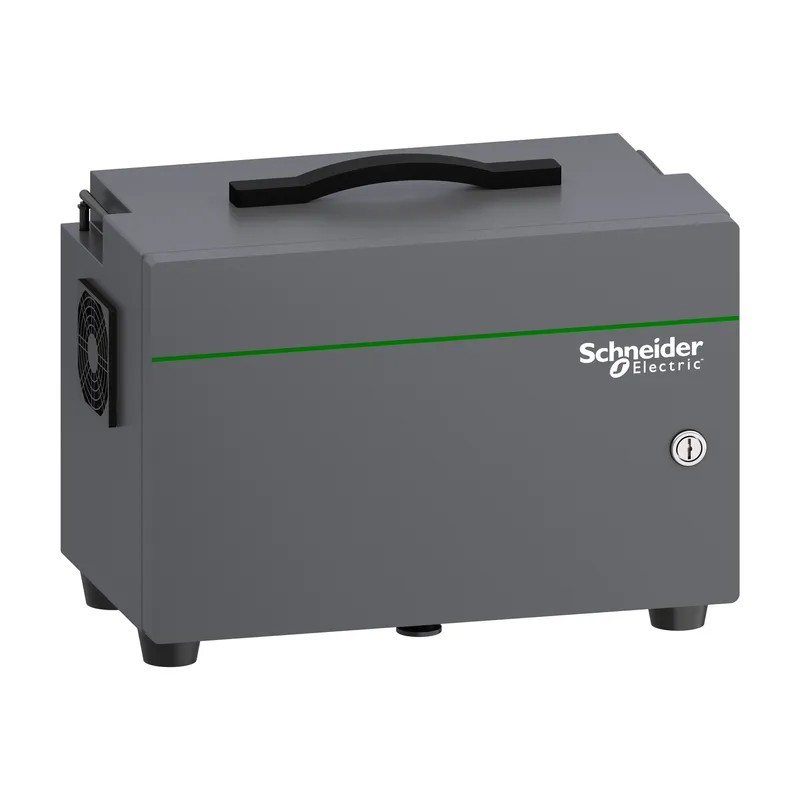

Schneider Electric LXMRL12C1000

Controller, Lexium Cobot, for 12 and 18 kg payload robot

MPN
LXMRL12C1000
EAN
3606485859545
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXMRL12C1000?

"Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation." "This cobot controller monitors collaborative robots with 12kg to 18kg payload, with an input power of 100V to 240V AC, 50-60Hz" "This cobot controller has one High-speed input for belt tracking, 16 Digital input and output, and 2 analog input or output." "Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines." "It has IP44 rating." "It embeds a communication interface (RJ45 connector) for TCP/IP, Modbus TCP, Modbus RTU, ProfiNet and Ethernet/IP." "It is made of aluminium and steel, and weighs 16kg. It measures 410mm wide, 307mm high and 235mm deep." "This cobot controller is designed to be mounted floor standing, placed next to the robot arms, in its work area." "It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE." "This cobot controller monitors collaborative robots with 12kg to 18kg payload. It is connected to the cobot using a connection 6meter long cable." "It is designed to be floor standing, placed near to the robot." "Collaborative robots are working companions of humans, reducing the drudgery of their work." "Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium Cobot
Product or component typeRobot controller
Product compatibility12 kg payload robot cobot; 18 kg payload robot cobot
Discrete input number16
Discrete output number16
Analogue input number2
Analogue output number2

Complementary

Input voltage100...240 V AC 50/60 Hz
I/O rated voltage24 V DC
Communication interfaceTCP/IP; Modbus TCP; Modbus RTU; Profinet; Ethernet/IP
IP degree of protectionIP44
MaterialStainless steel
Width410 mm
Height307 mm
Depth235 mm
Net weight16 kg
StandardsGB 11291.1:2011; EN/ISO 10218-1:2011; EN 60204-1:2018; EN/ISO 12100:2010; EN/ISO 13849-1:2015; EN 61000-6-2:2005; EN 61000-6-4:2007+A1:2011; ISO 13849-1:2015; ISO 13849-2:2012; ISO 14644-1; ISO 9001:2015; UL 1740; ANSI/RIA R15.06; CAN/CSA Z434; NFPA 79; CAN/CSA C22.2 No. 24; REACH; RoHS
MarkingCE; KC; TÜV

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXMRL12C1000: frequently asked questions

When can LXMRL12C1000 be shipped?

LXMRL12C1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMRL12C1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMRL12C1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMRL12C1000, subject to availability and destination.
