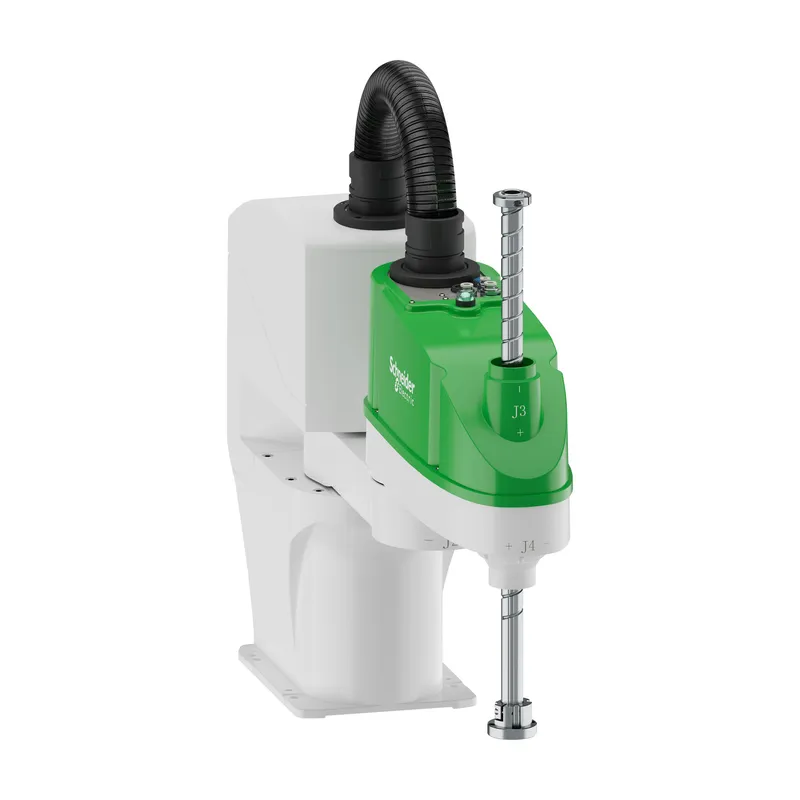

Schneider Electric LXMRSP0650300 – Scara robot, Lexium Scara, 500mm arm, 300mm

MPN: LXMRSP0650300 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium Cobot & Scara robots
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606487102199
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXMRSP0650300 be shipped?

LXMRSP0650300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMRSP0650300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMRSP0650300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMRSP0650300, subject to availability and destination.

This robot belongs to the Lexium SCARA robot range. It is a high-speed industrial robot with high movement accuracies. Its work area is 500mm, its stroke length is 300mm, its maximum payload capacity is 6kg and its communication is via a Sercos 3 fieldbus. It is designed to improve productivity and efficiency in manufacturing and assembly processes. The working range of the first axis is 130degrees, second axis is 129degrees, third axis is 360degrees. The maximum speeds are 7050mm per second for axes 1 and 2 combined, 1100mm per second for axis 3, and 2150deg per second for axis 4. It weighs 27kg. It is intended for industrial applications such as Assembly, Loading and unloading, Pick-and-place, Packaging, and Material handling. This SCARA robot comply with the CE and UKCA certifications. It is compatible with LMC402, LMC802, and LMC902 Motion controllers and is configurable with ESME Machine Expert software. it is sold individually per package. This robot is mounted on the ground, on its base, with 6 fixing points. The Lexium SCARA, with its built-in controller and precise tracking mechanisms, offers an all-in-one ultra-compact, high-speed, and precise robotic system. The SCARA robot range expands the industrial robotics portfolio. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Lexium SCARA
Product or component type	SCARA robot
Permanent permissible load	6 kg
Operating travel	0…500 mm horizontal; 0…300 mm vertical
Number of axis	4
Repeat accuracy	+/- 0.02 mm at J1; +/- 0.02 mm at J2; +/- 0.01 mm at J3; +/- 0.01 ° at J4

Complementary

Operating position	Rotational 360°
Maximum actuation speed	7050 mm/s J1+J2; 1100 mm/s J3
Input voltage	170...250 V AC without derating; 100...170 V AC with derating of 15%
Angular speed	2150 °/s J4
Mounting mode	Tabletop
Work space	J1: +/- 130 °; J2: +/- 129 °; J3: 300 mm; J4: +/- 360 °
Rated power in W	0.9 kW
Maximum power	2 kW
Noise level	70 dB
rated moment of inertia	0.01 kg.m² J4
Maximum moment of inertia	0.12 kg.m² J4
Net weight	27 kg

Environment

Ambient air temperature for operation	0…40 °C
Ambient air transport temperature	-20…60 °C
Ambient air temperature for storage	-20…60 °C
IP degree of protection	IP20; IP65 (with conformity kit)
Operating altitude	1000 m without derating; > 1000...1500 m 10 % derating of performance; > 1500...2000 m 20 % derating of performance
Environmental characteristic	Normal environment
resistance to electrostatic discharge	4 kV
resistance to fast transients	2 kV
