Schneider Electric LXMRL07S0000

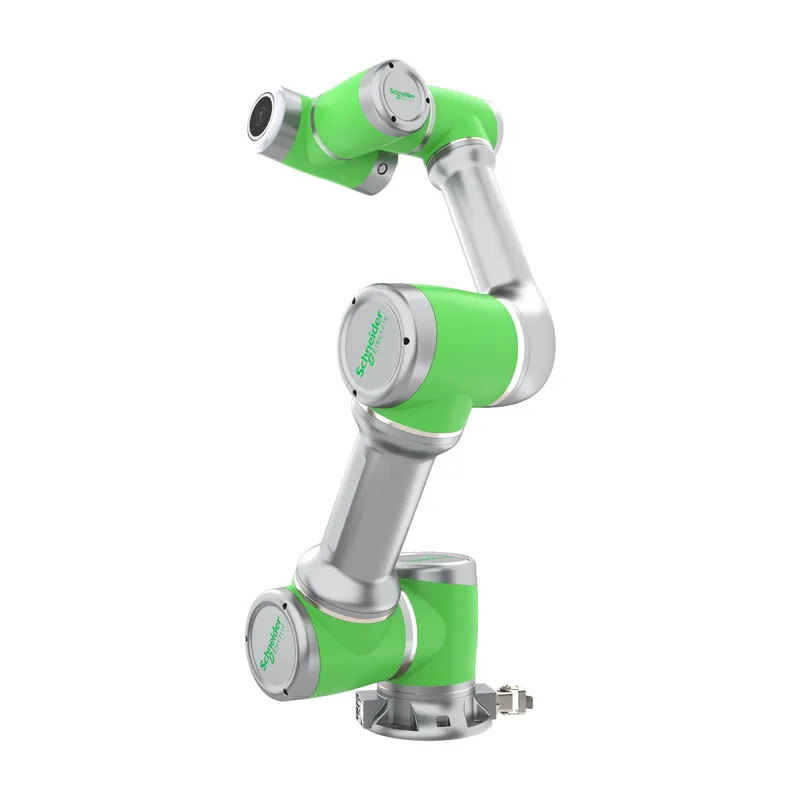

Collaborative robot, Lexium Cobot, maximum payload 7kg

MPN
LXMRL07S0000
EAN
3606485859491
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXMRL07S0000?

"Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation." "Lexium collaborative robot has 6 degrees of freedom allowing to perform movements similar to human gesture, relieving him of painful and repetitive operations." "This collaborative robot can support a load of 7kg with a operation radius of 819mm." "Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines." "Its action speed is 2.5meter/second, its position accuracy is plus or minus 0.02mm, and its operating temperature varies from 0 to 50degreeCentigrade." "it embeds 2 logic inputs, 2 logic outputs, 1 analog output, and a built-in torque feedback detection to protect the worker from collisions. It has IP54 rating." "It is made of aluminum, and weighs 22kg." "The collaborative robot can be used in fast and safe repetitive applications of gluing, machine setting, palletizing, pick and place, welding, gluing." "It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE." "This robot is monitored by a controller cabinet, and can be associated to a force sensor base, a force sensor flange, and a camera 2D." "It can be mounted in any positions, such as ground, wall, and ceiling mounting." "Collaborative robots are working companions of humans, reducing the drudgery of their work." "Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium Cobot
Product or component typeCollaborative robot
maximum payload7 kg
operating radius819 mm
positioning accuracy+/- 0.02 mm
degree of freedom6
programmingGraphical drag & drop
teach-in deviceIpad ios app; Android app

Complementary

maximum speed180°/s joint 1 +/- 360°; 180°/s joint 2 -85, +265°; 180°/s joint 3 +/- 175°; 180°/s joint 4 -85, +265°; 180°/s joint 5 +/- 360°; 180°/s joint 6 +/- 360°
Rated voltage24 V
Digital input number2
Digital output number2
Analogue input number2
Power consumption in W350 W
Mounting positionAny position
screw typeM8
StandardsGB 11291.1:2011; EN/ISO 10218-1:2011; EN 60204-1:2018; EN/ISO 12100:2010; EN/ISO 13849-1:2015; EN 61000-6-2:2005; EN 61000-6-4:2007+A1:2011; ISO 13849-1:2015; ISO 13849-2:2012; ISO 14644-1; ISO 9001:2015; UL 1740; ANSI/RIA R15.06; CAN/CSA Z434; NFPA 79; CAN/CSA C22.2 No. 24; REACH; RoHS
MarkingCE; KC; TÜV
MaterialAluminium
base diameter158 mm
Cable length6 m
Net weight22 kg

Environmental

IP degree of protectionIP54
Ambient air temperature for operation0…50 °C

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXMRL07S0000: frequently asked questions

When can LXMRL07S0000 be shipped?

LXMRL07S0000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMRL07S0000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMRL07S0000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMRL07S0000, subject to availability and destination.
