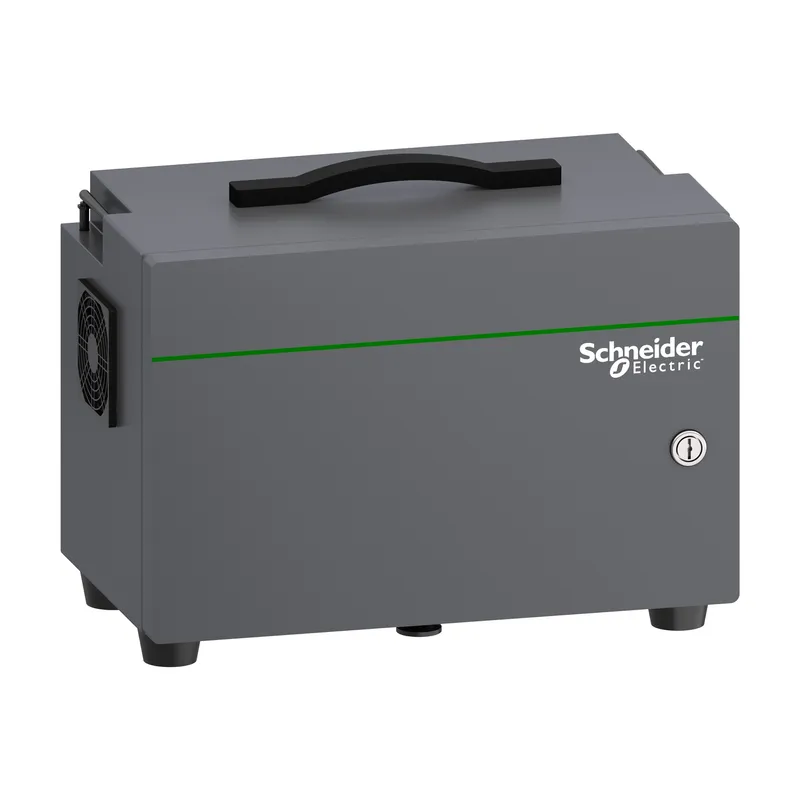

Schneider Electric LXMRL03C1000 – controller, Lexium Cobot, for 3 kg payload robot

MPN: LXMRL03C1000 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium Cobot & Scara robots
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	CN
UPC / EAN	3606485859521
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXMRL03C1000 be shipped?

LXMRL03C1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMRL03C1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMRL03C1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMRL03C1000, subject to availability and destination.

"Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation." "This cobot controller monitors collaborative robots with 3kg payload, with an input power of 100V to 240V AC, 50-60Hz" "This cobot controller has one High-speed input for belt tracking, 16 Digital input and output, and 2 analog input or output." "Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines." "It has IP44 rating." "It embeds a communication interface (RJ45 connector) for TCP/IP, Modbus TCP, Modbus RTU, ProfiNet and Ethernet/IP." "It is made of aluminium and steel, and weighs 12kg. It measures 410mm wide, 307mm high and 235mm deep." "This cobot controller is designed to be mounted floor standing, placed next to the robot arms, in its work area." "It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE." "This cobot controller monitors collaborative robots with 3kg payload. It is connected to the cobot using a connection 6meter long cable." "It is designed to be floor standing, placed near to the robot." "Collaborative robots are working companions of humans, reducing the drudgery of their work." "Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Lexium Cobot
Product or component type	Robot controller
Product compatibility	3 kg payload robot cobot
Discrete input number	16
Discrete output number	16
Analogue input number	2
Analogue output number	2

Complementary

Input voltage	100...240 V AC 50/60 Hz
I/O rated voltage	24 V DC
Communication interface	TCP/IP; Modbus TCP; Modbus RTU; Profinet; Ethernet/IP
IP degree of protection	IP44
Material	Stainless steel
Width	410 mm
Height	307 mm
Depth	235 mm
Net weight	12 kg
Standards	GB 11291.1:2011; EN/ISO 10218-1:2011; EN 60204-1:2018; EN/ISO 12100:2010; EN/ISO 13849-1:2015; EN 61000-6-2:2005; EN 61000-6-4:2007+A1:2011; ISO 13849-1:2015; ISO 13849-2:2012; ISO 14644-1; ISO 9001:2015; UL 1740; ANSI/RIA R15.06; CAN/CSA Z434; NFPA 79; CAN/CSA C22.2 No. 24; REACH; RoHS
Marking	CE; KC; TÜV
