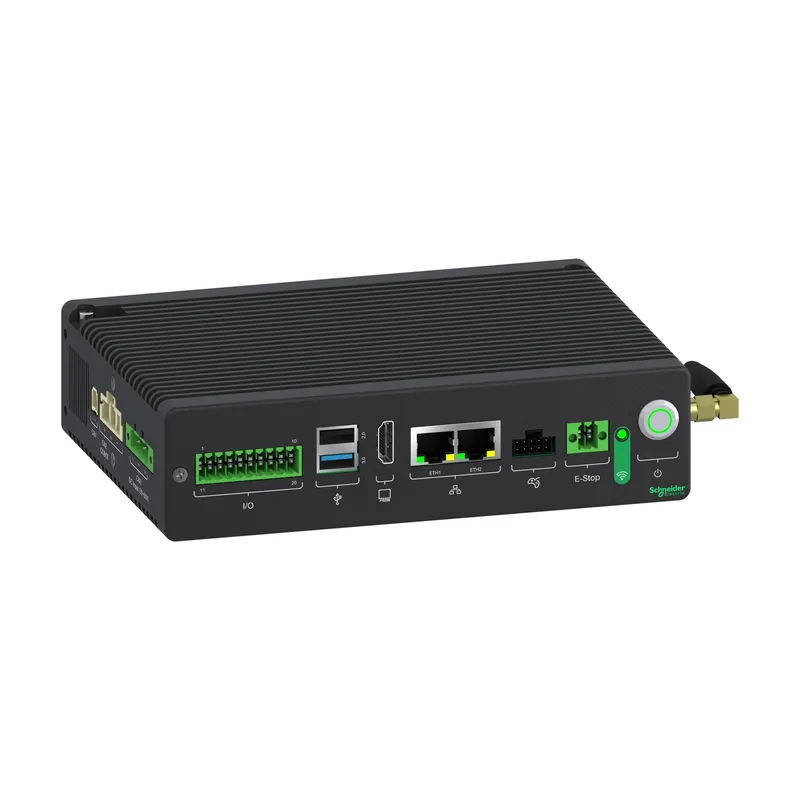

Schneider Electric LXMRL00C2000

Compact robot controller, Lexium Cobot, for 3 to 18kg payload robots

MPN
LXMRL00C2000
EAN
3606485859552
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXMRL00C2000?

"Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation." "This cobot compact controller monitors all collaborative robots with 3kg to 18kg payload with an input power of 30V to 60V DC." "This cobot controller has 7 digital 24V DC channels, configurable as input or output." "Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines." "It has IP20 rating." "It embeds a communication interface (RJ45 connector) for TCP/IP, Modbus TCP, Modbus RTU, ProfiNet and Ethernet/IP." "It is made of aluminum and steel, and weighs 1.1kg. It measures 128mm wide, 180mm high and 47mm deep." "This compact controller is designed to monitor the cobots in automation architectures." "It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE." "This cobot controller monitors all collaborative robots with 3kg to 18kg payload" "It is designed to be mounted on a panel or cabinet, with guide rail." "Collaborative robots are working companions of humans, reducing the drudgery of their work." "Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productLexium Cobot
Product or component typeRobot controller
Product compatibility3 kg payload robot cobot; 5 kg payload robot cobot; 7 kg payload robot cobot; 12 kg payload robot cobot; 18 kg payload robot cobot
Discrete input number7
Discrete output number7

Complementary

Input voltage30...60 V DC
I/O rated voltage24 V DC
Output current<= 40 A
Communication interfaceTCP/IP; Modbus TCP; Modbus RTU; Profinet; Ethernet/IP
Mounting modePanel mounting
IP degree of protectionIP20
MaterialAluminium; Steel
Length180 mm
Width128 mm
Height47 mm
Net weight1.1 kg
StandardsGB 11291.1:2011; EN/ISO 10218-1:2011; EN 60204-1:2018; EN/ISO 12100:2010; EN/ISO 13849-1:2015; EN 61000-6-2:2005; EN 61000-6-4:2007+A1:2011; ISO 13849-1:2015; ISO 13849-2:2012; ISO 14644-1; ISO 9001:2015; UL 1740; ANSI/RIA R15.06; CAN/CSA Z434; NFPA 79; CAN/CSA C22.2 No. 24; REACH; RoHS
MarkingCE; KC; TÜV

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

LXMRL00C2000: frequently asked questions

When can LXMRL00C2000 be shipped?

LXMRL00C2000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXMRL00C2000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXMRL00C2000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXMRL00C2000, subject to availability and destination.
