Control unit, Lexium 32i, LXM32i, EtherCAT
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with RJ45 connectors for Modbus, M12 for EtherCAT. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.637kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
| Range of product | Lexium 32i |
| Product or component type | Control unit |
| Device short name | LXM32i |
| Format of the drive | Board |
| Discrete input number | 2 safety discrete input(s); 4 logic discrete input(s) |
| Discrete input type | Safety (compliment of STO_A, compliment of STO_B terminals); Logic (DI terminals) |
| Sampling duration | DI: 0.25 ms discrete |
| Discrete input voltage | 24 V DC for capture; 24 V DC for logic; 24 V DC for safety |
| Discrete input logic | Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to IEC 61131-2 Type 1; Positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to IEC 61131-2 Type 1; Positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to IEC 61131-2 Type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 2 |
| Discrete output type | Logic output(s) (DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative (DO) conforming to IEC 61131-2 |
| Contact bounce time | <= 1 ms for compliment of STO_A, compliment of STO_B; 0.25 µs...1.5 ms for DI |
| Braking current | 50 mA |
| Response time on output | 250 µs (DO) for discrete output(s) |
| Control signal type | Servo motor encoder feedback |
| Protection type | Against reverse polarity: inputs signal; Against short-circuits: outputs signal |
| Safety function | Safe torque off safety function, integrated |
| Safety level | SIL 3 conforming to IEC 61508; PL = e conforming to ISO 13849-1 |
| Communication interface | EtherCAT, integrated |
| Connector type | RJ45 for Modbus; M12 for EtherCAT |
| Method of access | Slave |
| Physical interface | 2-wire RS485 multidrop for Modbus |
| Transmission rate | 9600, 19200, 38400 bps for bus length of 0…40 m for Modbus |
| Number of addresses | 1…127 for CANopen, CANmotion; 1…247 for Modbus |
| Status LED | 1 LED (red) servo drive voltage; 1 LED error; 1 LED RUN |
| Electromagnetic compatibility | Conducted EMC conforming to EN 55011 class A group 1; Conducted EMC conforming to EN 55011 class A group 2; Conducted EMC conforming to EN/IEC 61800-3 environment 2 category C3; Conducted EMC conforming to IEC/EN 61800-3 category C2; EMC immunity conforming to IEC/EN 61800-3 environments 1 and 2; EMC immunity level 3 conforming to IEC 61000-4-2; EMC immunity level 3 conforming to IEC 61000-4-3; EMC immunity level 3 conforming to IEC 61000-4-5; EMC immunity level 4 conforming to IEC 61000-4-4; Radiated EMC conforming to EN 55011 class A group 2; Radiated EMC conforming to IEC/EN 61800-3 category C3 |
| Type of cooling | Natural convection |
| Operating altitude | <= 1000 m without derating; > 1000...3000 m with conditions |
| Operating position | Vertical +/- 10 degree |
| Net weight | 0.637 kg |
| Standards | IEC 61800-3; IEC 61800-5-1 |
| Product certifications | TÜV; CSA; UL |
| Marking | CE |
| IP degree of protection | IP65 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60028-2-27 |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | 0…50 °C conforming to UL |
| Ambient air temperature for storage | -25…70 °C |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
LXM32IECT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for LXM32IECT and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM32IECT, subject to availability and destination.

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 0.4 kW

Motion servo drive, Lexium 32, single phase supply voltage 115/230 V, 0.3/0.5 kW


Protective cover, Lexium 32i, Lot of green Covers for LXM32ICAN control unit

Protective cover, Lexium 32i, Lot of green Covers for LXM32IECT control unit

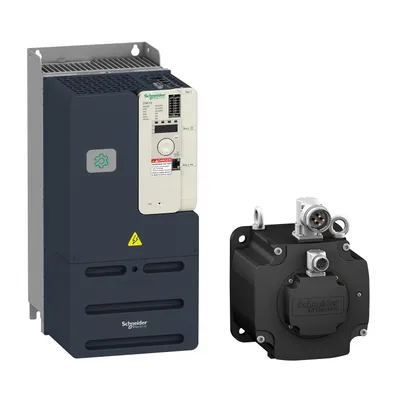

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 11 kW
