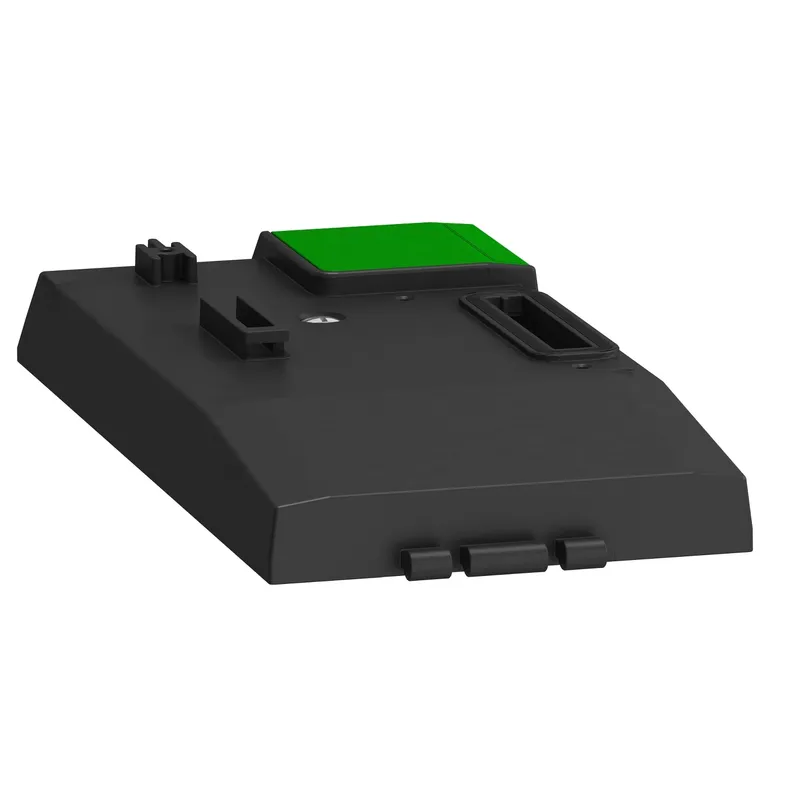

Schneider Electric – Control unit, Lexium 32i, LXM32i, CANopen/CANmotion

Name: Schneider Electric – Control unit, Lexium 32i, LXM32i, CANopen/CANmotion
Brand: Schneider Electric
SKU: LXM32ICAN

MPN: LXM32ICAN · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32i
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	ID
UPC / EAN	3606480620171
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXM32ICAN be shipped?

LXM32ICAN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM32ICAN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM32ICAN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM32ICAN, subject to availability and destination.

This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with M12 connectors for CANmotion, M12 for CANopen, RJ45 for Modbus. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.636kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Lexium 32i
Product or component type	Control unit
Device short name	LXM32i
Format of the drive	Board
Discrete input number	2 safety discrete input(s); 4 logic discrete input(s)
Discrete input type	Safety (compliment of STO_A, compliment of STO_B terminals); Logic (DI terminals)

Complementary

Sampling duration	DI: 0.25 ms discrete
Discrete input voltage	24 V DC for capture; 24 V DC for logic; 24 V DC for safety
Discrete input logic	Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to IEC 61131-2 Type 1; Positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to IEC 61131-2 Type 1; Positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to IEC 61131-2 Type 1
Response time	<= 5 ms compliment of STO_A, compliment of STO_B
Discrete output number	2
Discrete output type	Logic output(s) (DO)24 V DC
Discrete output voltage	<= 30 V DC
Discrete output logic	Positive or negative (DO) conforming to IEC 61131-2
Contact bounce time	<= 1 ms for compliment of STO_A, compliment of STO_B; 0.25 µs...1.5 ms for DI
Braking current	50 mA
Response time on output	250 µs (DO) for discrete output(s)
Control signal type	Servo motor encoder feedback
Protection type	Against reverse polarity: inputs signal; Against short-circuits: outputs signal
Safety function	Safe torque off safety function, integrated
Safety level	SIL 3 conforming to IEC 61508; PL = e conforming to ISO 13849-1
Communication interface	CANmotion, integrated; CANopen DS402, integrated
Connector type	M12 for CANmotion; M12 for CANopen; RJ45 for Modbus
Method of access	Slave
Physical interface	2-wire RS485 multidrop for Modbus
Transmission rate	9600, 19200, 38400 bps for bus length of 0…40 m for Modbus
Number of addresses	1…127 for CANopen, CANmotion; 1…247 for Modbus
Status LED	1 LED (red) servo drive voltage; 1 LED error; 1 LED RUN
Electromagnetic compatibility	Conducted EMC conforming to EN 55011 class A group 1; Conducted EMC conforming to EN 55011 class A group 2; Conducted EMC conforming to EN/IEC 61800-3 environment 2 category C3; Conducted EMC conforming to IEC/EN 61800-3 category C2; EMC immunity conforming to IEC/EN 61800-3 environments 1 and 2; EMC immunity level 3 conforming to IEC 61000-4-2; EMC immunity level 3 conforming to IEC 61000-4-3; EMC immunity level 3 conforming to IEC 61000-4-5; EMC immunity level 4 conforming to IEC 61000-4-4; Radiated EMC conforming to EN 55011 class A group 2; Radiated EMC conforming to IEC/EN 61800-3 category C3
Type of cooling	Natural convection
Operating altitude	<= 1000 m without derating; > 1000...3000 m with conditions
Operating position	Vertical +/- 10 degree
Net weight	0.636 kg

Environment

Standards	IEC 61800-5-1; IEC 61800-3
Product certifications	CSA; TÜV; UL
Marking	CE
IP degree of protection	IP65
Vibration resistance	1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60028-2-27
Pollution degree	2 conforming to IEC 61800-5-1
Environmental characteristic	Classes 3C1 conforming to IEC 60721-3-3
Relative humidity	Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
Ambient air temperature for operation	0…50 °C conforming to UL
Ambient air temperature for storage	-25…70 °C
