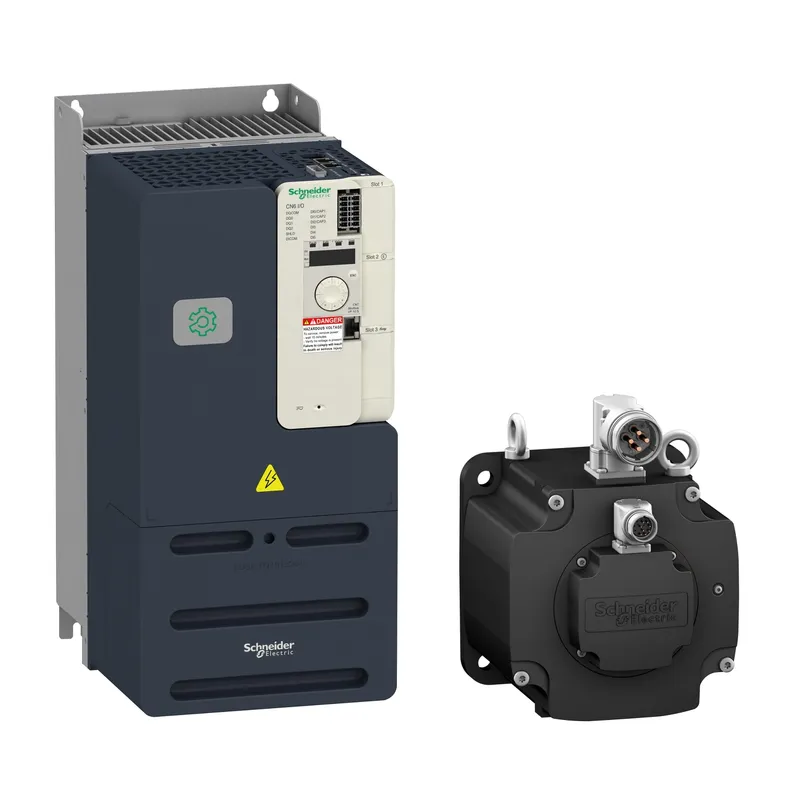

Schneider Electric LXM32MC10N4 – Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 11 kW
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lexium 32 & Motors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | ID |
| UPC / EAN | 3606485402420 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can LXM32MC10N4 be shipped?
LXM32MC10N4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LXM32MC10N4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LXM32MC10N4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM32MC10N4, subject to availability and destination.
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 capture discrete inputs and 3 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 40A at 4kHz and a continuous power of 11000W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. It is an IP20 rated product. Its dimensions are 180mm (Width) x 240mm (Depth) x 385mm (Height). It weighs 9.6kg. This product is certified by CE and CSA. It meets EN/IEC 61800-3 standards. This product is compatible with servo motor BMH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Lexium 32 |
| Device short name | LXM32M |
| Product or component type | Motion servo drive |
| Format of the drive | Book |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| EMC filter | Integrated |
| Continuous output current | 40 A at 4 kHz |
| Output current 3s peak | 100 A at 480 V for 5 s |
| Continuous power | 11000 W at 400 V; 11000 W at 480 V |
| Nominal power | 11 kW at 400 V 4 kHz; 11 kW at 480 V 8 kHz |
| Line current | 23.3 A 140 % at 480 V, without line choke; 32 A 54 % at 480 V, with external line choke of 0.5 mH; 38.1 A 70 % at 480 V, with external line choke of 0.5 mH |
Complementary
| Switching frequency | 4 kHz |
| Overvoltage category | III |
| Maximum leakage current | 30 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Single-strand IEC cable (temperature: 50 °C) copper 90 °C XLPE/EPR |
| Electrical connection | Terminal, clamping capacity: 8 mm², 8 AWG (CN8) |
| Tightening torque | CN8: 3.8 N.m |
| Discrete input number | 2 capture discrete input(s) |
| Discrete input type | Capture (CAP terminals) |
| Sampling duration | 0.25 ms |
| Discrete input voltage | 24 V DC for capture |
| Discrete input logic | Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1 |
| Response time | <= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number | 3 |
| Discrete output type | Logic output(s) (DO)24 V DC |
| Discrete output voltage | <= 30 V DC |
| Discrete output logic | Positive or negative (DO) conforming to EN/IEC 61131-2 |
| Contact bounce time | <= 1 ms for compliment of STO_A, compliment of STO_B |
| Braking current | 50 mA |
| Response time on output | 250 µs (DO) for discrete output(s) |
| Control signal type | Pulse train output (PTO) RS422 <500 kHz <100 m |
| Protection type | Against reverse polarity: inputs signal |
| Safety function | STO (safe torque off), integrated |
| Safety level | SIL 3 conforming to EN/IEC 61508 |
| Communication interface | Modbus TCP, with separated communication card; CANopen, with separated communication card; CANmotion, with separated communication card; Ethernet/IP, with separated communication card; EtherCAT, with separated communication card; Profibus, with separated communication card; Profinet, with separated communication card; Analog I/O, with separated communication card; Digital I/O, integrated |
| Status LED | 1 LED (red) servo drive voltage |
| Signalling function | Display of faults 7 segments |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Product compatibility | Servo motor BMH (190 mm, 1 motor stacks); Servo motor BMH (190 mm, 2 motor stacks); Servo motor BMH (190 mm, 3 motor stacks); Servo motor BMH (190 mm, 4 motor stacks) |
| Width | 180 mm |
| Height | 385 mm |
| Depth | 240 mm |
| Net weight | 9.6 kg |
Environment
| Electromagnetic compatibility | Conducted EMC, class A group 1 conforming to EN 55011 |
| Standards | EN/IEC 61800-3 |
| Product certifications | CSA |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60028-2-27 |
| Pollution degree | 2 conforming to EN/IEC 61800-5-1 |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity | Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | 0…50 °C conforming to UL |
| Ambient air temperature for storage | -25…70 °C |
| Type of cooling | Integrated fan |
| Operating altitude | <= 1000 m without derating |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet LXM32MC10N4 |
