Schneider Electric LXM28EU02M3X

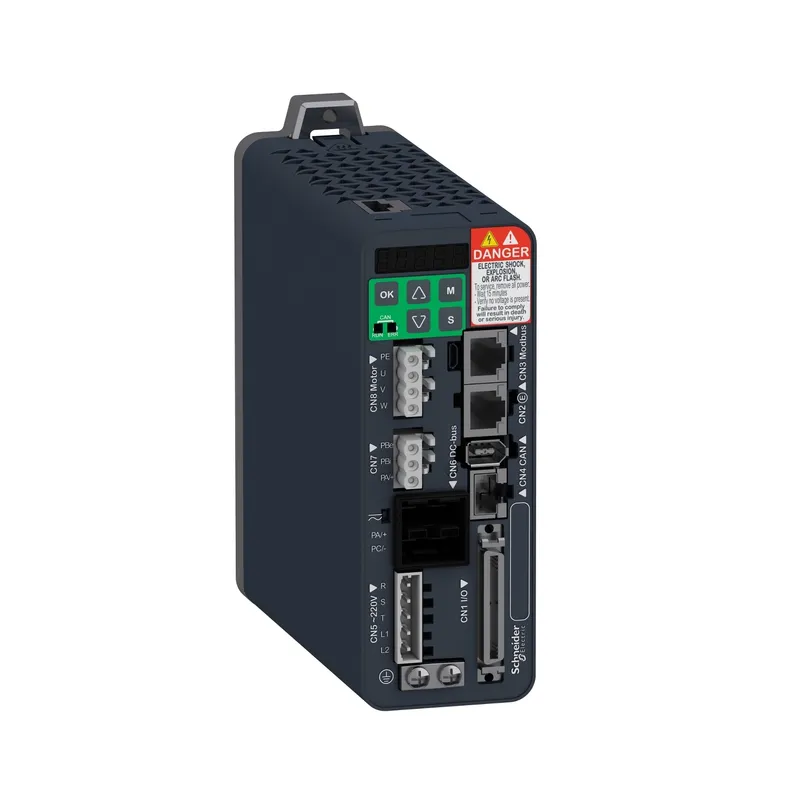

Lexium28 EtherCAT drive, 200W, 1/3~ 230V
- MPN
- LXM28EU02M3X
- EAN
- 3606481167262
- Category
- Lexium 28 & Motors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric LXM28EU02M3X?
Schneider Electric LXM28EU02M3X — Lexium28 EtherCAT drive, 200W, 1/3~ 230V (Lexium 28 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Lexium 28 |
| Device short name | LXM28E |
| Product or component type | Motion servo drive |
| Format of the drive | Compact housing |
| Line current | 2.4 A 226.8 % at 220 V, single phase; 2.4 A 200.7 % at 220 V, three phase |
Complementary
| Network number of phases | Three phase; Single phase |
| [Us] rated supply voltage | 200...240 V (- 10...15 %) for three phase; 200...240 V (- 20...15 %) for single phase |
| Supply voltage limits | 200…255 V three phase; 170…255 V single phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| EMC filter | Without EMC filter |
| Continuous output current | 1.5 A at 16 kHz |
| Output current 3s peak | 4.5 A at 220 V |
| Continuous power | 200 W at 220 V |
| Nominal power | 0.2 kW at 220 V 16 kHz |
| Switching frequency | 16 kHz |
| Overvoltage category | III |
| Maximum leakage current | 1.3 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Shielded motor cable (temperature: 0…55 °C) copper |
| Electrical connection | Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (L1-L2); Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (R, S, T); Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (U, V, W, PE); Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (PA/+, PBe) |
| Discrete input number | 8 programmable (CN1); 2 fast capture (CN1); 1 safety function STO (CN9) |
| Discrete input voltage | 24 V DC for logic |
| Discrete input logic | Positive or negative (CN1) |
| Discrete output number | 5 logic output (CN1) at 12...24 V DC; 1 pulse train output (PTO) (CN1) |
| Discrete output voltage | 12...24 V DC |
| Discrete output logic | Positive or negative (CN1) |
| Control signal type | Servo motor encoder feedback CN2 |
| Protection type | Against reverse polarity: inputs signal; Against short-circuits: outputs signal; Overcurrent: motor; Overvoltage: motor; Undervoltage: motor; Overheating: motor; Overload: motor; Overspeed: motor |
| Safety function | STO (safe torque off), integrated |
| Safety level | SIL 2 conforming to IEC 61800-5-2: 2007; SIL 2 conforming to IEC 61508-1: 2010; PL d/category 3 conforming to ISO 13849-1: 2008; SIL 2 conforming to ISO 13849-1: 2009/AC; SIL 2 conforming to IEC 60204-1: 2006; SIL 2 conforming to IEC 60204-1: 2009/A1; SIL 2 conforming to IEC 60204-1: 2010/AC; SIL 2 conforming to IEC 62061: 2012 |
| Communication interface | EtherCAT, integrated |
| Connector type | RJ45 (CN4) for EtherCAT |
| Method of access | Slave |
| Transmission rate | 100 Mbit/s for EtherCAT |
| Physical interface | RS485 for Modbus Serial line slave |
| Status LED | 1 LED (red) DC bus energized; 1 LED (multi-colour) N.RUN; 1 LED (multi-colour) N.ERR; 2 LEDs (yellow) Link (Link Status); 2 LEDs (yellow) activity |
| Signalling function | Servo status and fault codes five 7-segment display units |
| Marking | CE; CULus |
| Type of cooling | Natural convection |
| Operating position | Vertical |
| Product compatibility | Servo motor BCH2 (60 mm, 1 motor stacks) at 200 W |
| Width | 55 mm |
| Height | 150 mm |
| Depth | 146 mm |
| Net weight | 1 kg |
| Supply voltage description | Three phase 220 V AC 50...60 Hz; Single phase 220 V AC 50...60 Hz |
| Network number of phases | 3; 1 |
| Drive voltage drop coefficient | 1 |
| Field weakening | False |
| Continuous output current 2 | 1.5 A |
| Switching frequency 2 | 16 kHz |
| Continuous output current 3 | 1.5 A |
| Switching frequency 3 | 16 kHz |
| Communication iinterface | Pulse train output; EtherCAT |
| Emc filter compatibility | Type 022; Type 020 |
Environment
| Electromagnetic compatibility | Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Standards | IEC 61800-5-1 |
| Product certifications | CE; cULus |
| IP degree of protection | IP20 |
| Vibration resistance | 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3 |
| Shock resistance | 10 gn, type I conforming to IEC 60721-3-3 |
| Relative humidity | 5…95 % without condensation |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…65 °C |
| Operating altitude | <= 1000 m without derating; > 1000...2000 m 1 % per 100 m |
