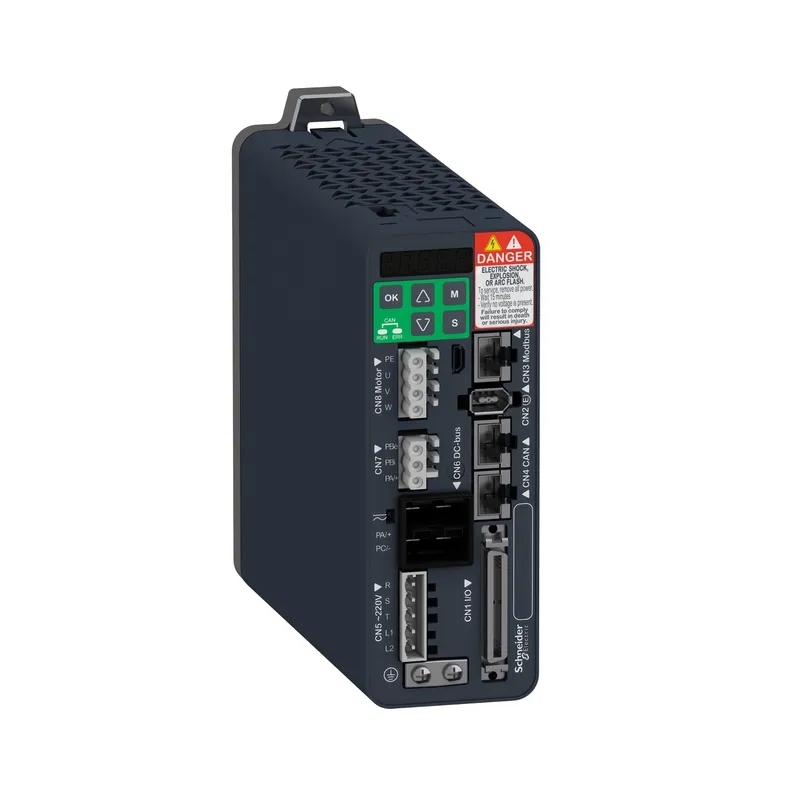

Schneider Electric LXM28EU15M3X – Lexium28 EtherCAT drive, 1.5kW, 1/3~ 230V

Name: Schneider Electric LXM28EU15M3X – Lexium28 EtherCAT drive, 1.5kW, 1/3~ 230V
Brand: Schneider Electric
SKU: LXM28EU15M3X

MPN: LXM28EU15M3X · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 28 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Country of origin	CN
UPC / EAN	3606481167309
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXM28EU15M3X be shipped?

LXM28EU15M3X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM28EU15M3X in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM28EU15M3X and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM28EU15M3X, subject to availability and destination.

"This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW and associated servo motors." "This AC-servo drives Lexium 28 is designed for motion control, in combination with AC-servo motors BCH2, with a continuous power of 1500W at 220V." "This servo drive has a digital and analog I/Os, an encoder interface for BCH2 servo motors, and embeds an Ethercat communication interface for being controlled." "The Ethercat communication function provides access to this servo drive’s configuration, adjustment, control, and monitoring functions." "This servo drive has a current line of 6A, Harmonic distortion ratio of 181.8percent at 220V on 1-phase network, and 160.6percent at 220V on 3-phase network." "It has 8 programmable discrete inputs, 2 fast capture inputs, one safety function STO input, 5 logic outputs and 1 pulse train output." "It measures 55mm wide, 155mm high, 170mm deep. It weighs 1.2kg." "Servo motors BCH2 in combination with Lexium 28 servo drives are designed for application such as material working, material handling, assembly line, packaging." "This servo drive is certified CULus, CSA, and marked CE." "This servo drive is compatible with BCH2 motors with same input power, additional EMC filters, multi loader tool for configuration, and Ethernet/PTI/STO cables." "It installed on panel with 2x holes of diameter 4.6mm. A vertical position (plus or minus 10degrees) is required for cooling the device." "Lexium 28 servo drives & Lexium BCH2 servo motors are the Optimized servo bundles for compact machines." "Lexium 28 & Lexium BCH2 are optimized bundles for easy integration into machines, embedding communication interfaces, safety functions and DC bus sharing." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Lexium 28
Device short name	LXM28E
Product or component type	Motion servo drive
Format of the drive	Compact housing
Line current	10 A 166.6 % at 220 V, single phase; 10 A 144.8 % at 220 V, three phase

Complementary

Network number of phases	Single phase; Three phase
[Us] rated supply voltage	200...240 V (- 10...15 %) for three phase; 200...240 V (- 20...15 %) for single phase
Supply voltage limits	200…255 V three phase; 170…255 V single phase
Supply frequency	50/60 Hz - 5...5 %
Network frequency	47.5...63 Hz
EMC filter	Without EMC filter
Continuous output current	7 A at 16 kHz
Output current 3s peak	21 A at 220 V
Continuous power	1500 W at 220 V
Nominal power	1.5 kW at 220 V 16 kHz
Switching frequency	16 kHz
Overvoltage category	III
Maximum leakage current	4.5 mA
Output voltage	<= power supply voltage
Electrical isolation	Between power and control
Type of cable	Shielded motor cable (temperature: 0…55 °C) copper
Electrical connection	Spring terminal, clamping capacity: 1.3...1.5 mm², 16 AWG (L1-L2); Spring terminal, clamping capacity: 1.3...1.5 mm², 16 AWG (R, S, T); Spring terminal, clamping capacity: 1.3...1.5 mm², 16 AWG (U, V, W, PE); Spring terminal, clamping capacity: 1.3...1.5 mm², 16 AWG (PA/+, PBe)
Discrete input number	8 programmable (CN1); 2 fast capture (CN1); 1 safety function STO (CN9)
Discrete input voltage	24 V DC for logic
Discrete input logic	Positive or negative (CN1)
Discrete output number	5 logic output (CN1) at 12...24 V DC; 1 pulse train output (PTO) (CN1)
Discrete output voltage	12...24 V DC
Discrete output logic	Positive or negative (CN1)
Control signal type	Servo motor encoder feedback CN2
Protection type	Against reverse polarity: inputs signal; Against short-circuits: outputs signal; Overcurrent: motor; Overvoltage: motor; Undervoltage: motor; Overheating: motor; Overload: motor; Overspeed: motor
Safety function	STO (safe torque off), integrated
Safety level	SIL 2 conforming to IEC 61800-5-2: 2007; SIL 2 conforming to IEC 61508-1: 2010; PL d/category 3 conforming to ISO 13849-1: 2008; SIL 2 conforming to ISO 13849-1: 2009/AC; SIL 2 conforming to IEC 60204-1: 2006; SIL 2 conforming to IEC 60204-1: 2009/A1; SIL 2 conforming to IEC 60204-1: 2010/AC; SIL 2 conforming to IEC 62061: 2012
Communication interface	EtherCAT, integrated
Connector type	RJ45 (CN4) for EtherCAT
Method of access	Slave
Transmission rate	100 Mbit/s for EtherCAT
Physical interface	RS485 for Modbus Serial line slave
Status LED	1 LED (red) DC bus energized; 1 LED (multi-colour) N.RUN; 1 LED (multi-colour) N.ERR; 2 LEDs (yellow) Link (Link Status); 2 LEDs (yellow) activity
Signalling function	Servo status and fault codes five 7-segment display units
Marking	CE; CULus
Type of cooling	Natural convection
Operating position	Vertical
Product compatibility	Servo motor BCH2 (130 mm, 3 motor stacks) at 1500 W
Width	55 mm
Height	150 mm
Depth	170 mm
Net weight	1.2 kg
Supply voltage description	Single phase 220 V AC 50...60 Hz; Three phase 220 V AC 50...60 Hz
Network number of phases	3; 1
Drive voltage drop coefficient	1
Field weakening	False
Continuous output current 2	7 A
Switching frequency 2	16 kHz
Continuous output current 3	7 A
Switching frequency 3	16 kHz
Communication iinterface	Pulse train output; EtherCAT
Emc filter compatibility	Type 022; Type 020

Environment

Electromagnetic compatibility	Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Standards	IEC 61800-5-1
Product certifications	CE; cULus
IP degree of protection	IP20
Vibration resistance	3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
Shock resistance	10 gn, type I conforming to IEC 60721-3-3
Relative humidity	5…95 % without condensation
Ambient air temperature for operation	0…55 °C
Ambient air temperature for storage	-25…65 °C
Operating altitude	<= 1000 m without derating; > 1000...2000 m 1 % per 100 m
