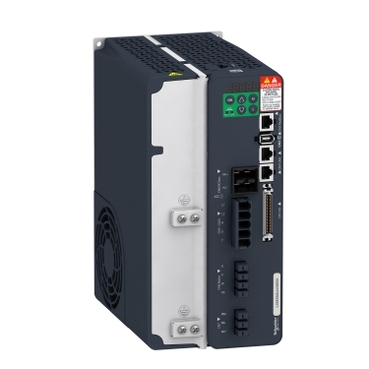

Motion servo drive, Lexium 28, three phase, 200 to 240V, 4.5kW
"This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors." "It is a 3-phase servo drive, powered by 200V to 230V, its output power is 4.5kW." "It operates via a PTI/PTO interface comprising 6 digital inputs and 3 digital outputs." "This servo drive embeds a CANopen/CANmotion fieldbus interfaceembeds a CANopen/CANmotion fieldbus interface" "It controls a nominal speed of rotation from 1500rpm to 2000rpm." "It has a pulse-train-input/output interface, 1 digital input, a position sequence mode, 1 Analog input for speed/torque control mode, and a safety function STO." "Its dimensions are 116mm wide, 234mm high, and 186mm deep. It weighs 3.2kg." "The Servo drive receives a command signal from a control system, amplifies the signal, and transmits electric current to the servo motor in order to run motion." "This servo drive is certified by CE, CULus, and CSA." "This servo drive is compatible with 3.5kW and 4.5kW BCH2 servo motors." "This is a SinCos Hiperface encoder cordset for BSH servo motors." "It installs into the control cabinet, in a vertical position (±10°) required for its cooling." "Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines." "Designed for optimized & cost-effective."
| Range of product | Lexium 28 |
| Device short name | LXM28A |
| Product or component type | Motion servo drive |
| Format of the drive | Compact housing |
| Line current | 17.9 A 147.1 % at 220 V, three phase |
| Network number of phases | 3 |
| [Us] rated supply voltage | 200...240 V (- 10...15 %) for three phase |
| Supply voltage limits | 200…255 V three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| EMC filter | Without EMC filter |
| Continuous output current | 22.9 A at 8 kHz |
| Output current 3s peak | 61 A at 220 V |
| Continuous power | 4500 W at 220 V |
| Nominal power | 4.5 kW at 220 V 8 kHz |
| Switching frequency | 8 kHz |
| Overvoltage category | III |
| Maximum leakage current | 1.55 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Shielded motor cable (temperature: 0…55 °C) copper |
| Electrical connection | Spring terminal, clamping capacity: 6 mm², AWG 10 (L1-L2), Spring terminal, clamping capacity: 6 mm², AWG 10 (R, S, T), Spring terminal, clamping capacity: 6 mm², AWG 10 (U, V, W, PE), Spring terminal, clamping capacity: 6 mm², AWG 10 (PA/+, PBe) |
| Discrete input number | 8 programmable (CN1), 1 pulse train input (PTI) (CN1), 2 fast capture (CN1), 1 safety function STO (CN9) |
| Discrete input voltage | 24 V DC for logic |
| Discrete input logic | Positive or negative (CN1) |
| Discrete output number | 5 logic output (CN1) at 12...24 V DC, 1 pulse train output (PTO) (CN1) |
| Discrete output voltage | 12...24 V DC |
| Discrete output logic | Positive or negative (CN1) |
| Analogue input number | 2 |
| Absolute accuracy error | 0.1 % |
| Analogue input type | V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits, T_REF voltage analog input |
| Control signal type | Servo motor encoder feedback CN2 |
| Protection type | Against reverse polarity: inputs signal, Against short-circuits: outputs signal, Overcurrent: motor, Overvoltage: motor, Undervoltage: motor, Overheating: motor, Overload: motor, Overspeed: motor |
| Safety function | STO (safe torque off), integrated |
| Safety level | SIL 2 conforming to IEC 61800-5-2: 2007, SIL 2 conforming to IEC 61508-1: 2010, PL d/category 3 conforming to ISO 13849-1: 2008, SIL 2 conforming to ISO 13849-1: 2009/AC, SIL 2 conforming to IEC 60204-1: 2006, SIL 2 conforming to IEC 60204-1: 2009/A1, SIL 2 conforming to IEC 60204-1: 2010/AC, SIL 2 conforming to IEC 62061: 2012 |
| Communication interface | CANopen, integrated, CANmotion, integrated |
| Connector type | RJ45 (CN4) for CANopen, CANmotion |
| Method of access | Slave |
| Transmission rate | 250 kbit/s for bus length of 100…250 m for CANopen, CANmotion, 500 kbit/s for bus length of 4…100 m for CANopen, CANmotion, 1 Mbit/s for bus length of 4 m for CANopen, CANmotion |
| Number of addresses | 1…127 for CANopen, CANmotion |
| Physical interface | RS485 for Modbus Serial line slave |
| Status LED | 1 LED (red) charge, 1 LED (green) RUN, 1 LED (red) error |
| Signalling function | Servo status and fault codes five 7-segment display units |
| Marking | CE, CULus |
| Type of cooling | Integrated fan |
| Operating position | Vertical |
| Product compatibility | Servo motor BCH2 (180 mm, 3 motor stacks) at 4500 W, Servo motor BCH2 (180 mm, 2 motor stacks) at 3500 W |
| Width | 116 mm |
| Height | 234 mm |
| Depth | 186 mm |
| Net weight | 3.2 kg |
| Supply voltage description | Three phase 220 V AC 50...60 Hz |
| Drive voltage drop coefficient | 1 |
| Field weakening | False |
| Continuous output current 2 | 22.9 A |
| Output current 3s peak 2 | 61 A at 220 V |
| Switching frequency 2 | 8 kHz |
| Continuous output current 3 | 22.9 A |
| Output current 3s peak 3 | 61 A at 220 V |
| Switching frequency 3 | 8 kHz |
| Communication iinterface | CANmotion, Pulse train input, Pulse train output, CANopen DS402 |
| Emc filter compatibility | Type 023 |
| Electromagnetic compatibility | Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3 |
| Standards | IEC 61800-5-1 |
| Product certifications | CE, cULus |
| IP degree of protection | IP20 |
| Vibration resistance | 3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3 |
| Shock resistance | 10 gn, type I conforming to IEC 60721-3-3 |
| Relative humidity | 5…95 % without condensation |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…65 °C |
| Operating altitude | <= 1000 m without derating, > 1000...2000 m 1 % per 100 m |
| Package 1 | 1 PCE, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.910 kg |
