Schneider Electric LV432500

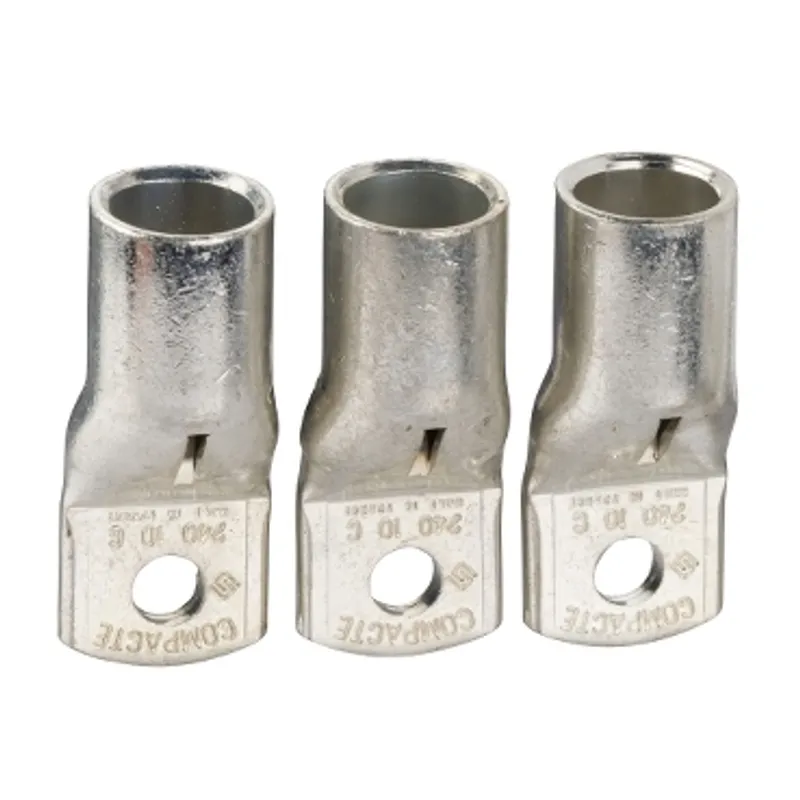

Crimp lugs for copper cable, ComPacT NSX400/630, 240mm², set of 3 parts
- MPN
- LV432500
- EAN
- 3606480019470
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV432500?
These accessories are crimp lugs for Compact NSX 400/630, EasyPact CVS 400/630 or FuPact INFB 200/860. These crimp lugs may be used for copper cable of 240mm². These crimp lugs are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.
Specifications
Specifications
| Product or component type | Crimp lug |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT NSX400, ComPacT NSX630, ComPacT NSX400 DC, ComPacT NSX630 DC, EasyPact CVS400...630, FuPact Fupact INF, FuPact FuPacT ISFT |
| Poles description | 3P |
| Quantity per set | Set of 3 |
| [In] rated current | 630 A |
| Provided equipment | Interphase barriers |
| Conductor material | Copper |
| Connections - terminals | Crimp lug1 cable(s) 240 mm² |
Packaging
| Package 1 | 1 PCE, 13.2 cm × 13.0 cm × 3.0 cm (L × W × H), 427.0 g |
| Package 2 | 12 BB1, 35.7 cm × 19.2 cm × 10.5 cm (L × W × H), 5.313 kg |
| Package 3 | 24 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 10.887 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV432500: frequently asked questions
When can LV432500 be shipped?
LV432500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV432500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV432500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV432500, subject to availability and destination.
