Schneider Electric LV432503
Crimp lugs for copper cable, ComPacT NSX400/630, 300mm², set of 4 parts
- MPN
- LV432503
- EAN
- 3606480019500
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV432503?

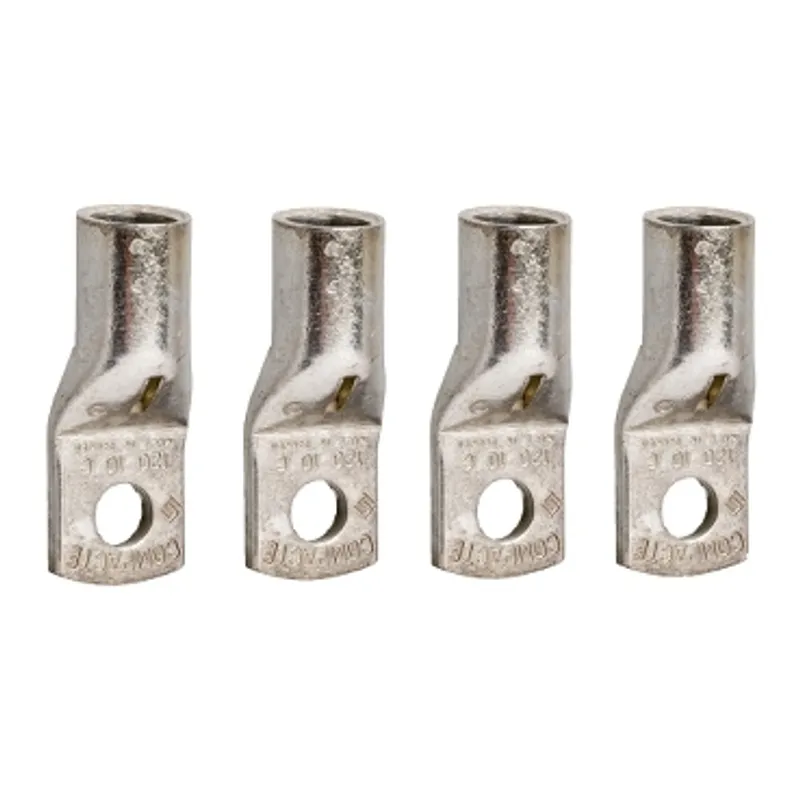

These accessories are crimp lugs for Compact NSX 400/630, EasyPact CVS 400/630 or FuPact INFB 200/860. These crimp lugs may be used for copper cable of 300mm². These crimp lugs are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 4 parts.
Specifications
Specifications
| Product or component type | Crimp lug |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT NSX400, ComPacT NSX630, ComPacT NSX400 DC, ComPacT NSX630 DC, EasyPact CVS400...630, FuPact Fupact INF, FuPact FuPacT ISFT |
| Poles description | 4P |
| Quantity per set | Set of 4 |
| [In] rated current | 630 A |
| Provided equipment | Interphase barriers |
| Conductor material | Copper |
| Connections - terminals | Crimp lug1 cable(s) 300 mm² |
Packaging
| Package 1 | 1 PCE, 12.5 cm × 10.0 cm × 4.5 cm (L × W × H), 620.0 g |
| Package 2 | 20 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 12.887 kg |
