Schneider Electric LV429390

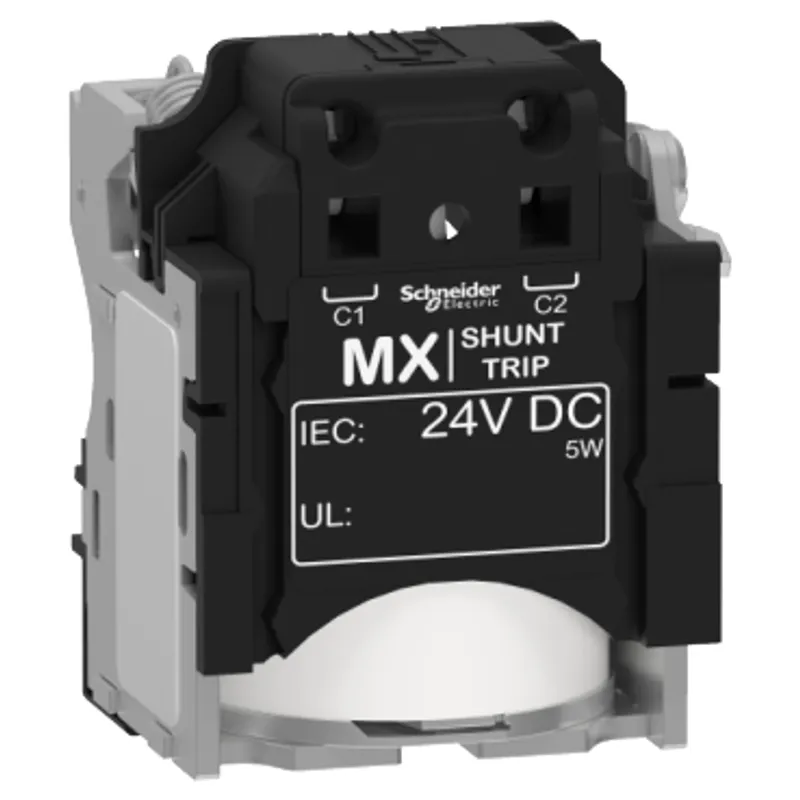

Shunt trip release MX, ComPacT NSX, 24VDC, screwless spring terminal connections
- MPN
- LV429390
- EAN
- 3606480019128
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LV429390?
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Specifications
Specifications
| Range | ComPacT |
| Range of product | ComPact NSX100...250, ComPacT NSX100...250, ComPact NSX400...630, ComPacT NSX400...630, ComPact NSX100...250 DC, ComPacT NSX100...250 DC, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC PV, ComPact NSX400...630 DC, ComPacT NSX400...630 DC, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC PV, Easy UPS 3S, Galaxy VM, Galaxy VS |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Range compatibility | ComPacT ComPacT NSX, ComPacT ComPacT NSX DC, ComPact ComPact NSX, ComPact ComPact NSX DC, EasyPact EasyPact CVS, PowerPact PowerPact Multistandard |
| Voltage release type | Opening coil, Shunt trip release |
| [Uc] control circuit voltage | 24 V DC |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms |
| Control signal type | Impulse, Maintained |
| Impulse duration | >= 20 ms |
| Supply inrush power | 10 W |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| Wire stripping length | 7 mm |
Packaging
| Package 1 | 1 PCE, 6.300 cm × 4.700 cm × 4.500 cm (L × W × H), 115.900 g |
| Package 2 | 10 BB1, 24.800 cm × 10.800 cm × 7.300 cm (L × W × H), 1.197 kg |
| Package 3 | 60 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.582 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV429390: frequently asked questions
When can LV429390 be shipped?
LV429390 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
