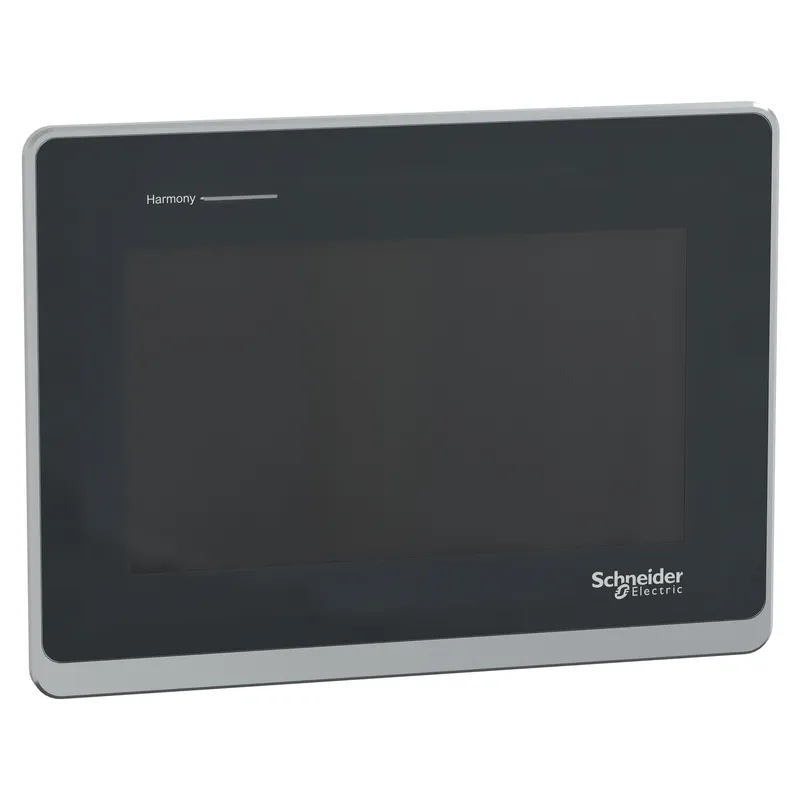

Schneider Electric HMISTW6400
Touch panel screen, Harmony ST6 & STW6, 7"W display, 2Ethernet, USB host&device, 24 VDC
- MPN
- HMISTW6400
- EAN
- 3606489918088
- Category
- Harmony ST6
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric HMISTW6400?
This Basic Web HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is a ready-to-use agnostic HMI terminal with pre-installed HTML5 browser. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 512 MB user data memory, and 128 KB backup memory. This HMI STW6 supports 2x Ethernet port, 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony ST6 |
| Product or component type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 512 MB device memory; 512 MB user data memory; 128 kB backup memory |
Complementary
| Display size | 7 inch |
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 800 x 480 pixels WVGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours with white |
| Brightness | 16 levels |
| Character font | ASCII; ASCII (European characters); Katakana |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| Power consumption in W | 9 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady for offline; Status LED green, steady for operating; Status LED green, flashing for operating; Status LED green, faded for stand-by; Status LED orange, flashing for software starting up; Status LED red, steady for power supply (ON); Status LED red, flashing for operating; Status LED red, off for power supply (OFF) |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 USB 2.0 type Aback; 1 Ethernet - female RJ45bottom |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C; Built-in 10...90 % RH |
| Fixing mode | By 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201; By 4 screws conforming to IEC 61131-2; By 4 screws conforming to IEC 61000-6-2 |
| Enclosure material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 190 x 135 mm panel cut dimension |
| Height | 153 mm |
| Width | 208 mm |
| Depth | 45 mm |
| Net weight | 0.8 kg |
Environment
| Immunity to microbreaks | 5 ms |
| Standards | IEC 61000-6-4; IEC 61000-6-2; IEC 61131-2; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Product certifications | CSA; CE; UKCA |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2; IP65 (front panel) conforming to IEC 61131-2 |
| NEMA degree of protection | NEMA 4 front panel (indoor use); NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV (signal ports); Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3; Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
