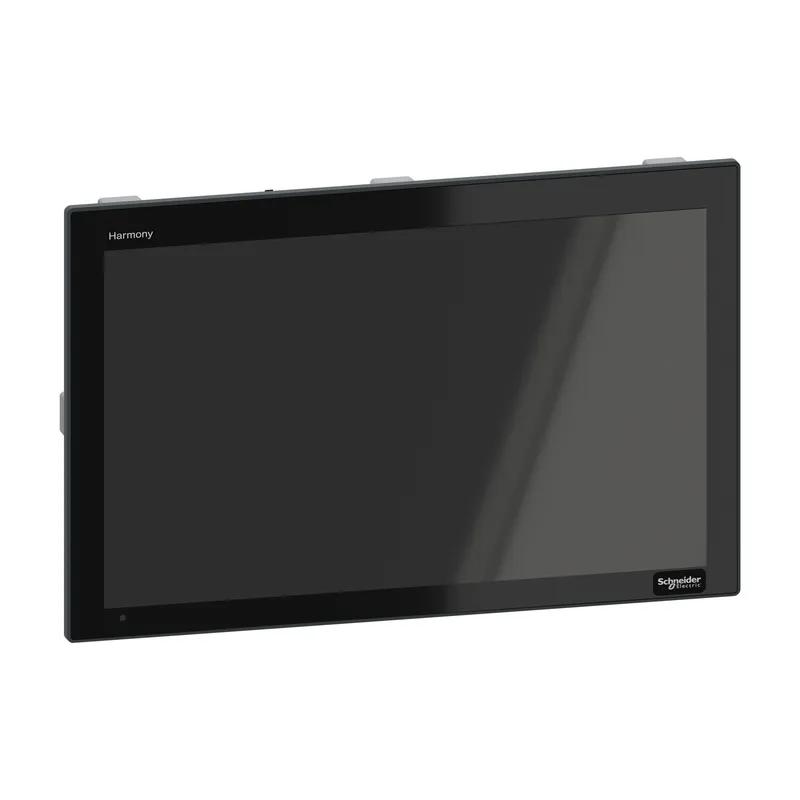

Schneider Electric HMIGT6740WCDW – Harmony Web Panel GTW6 Screen 15.6"W FHD Touch PCAP 12-24VDC power
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | HMI & Operator Panels |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3606487846451 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can HMIGT6740WCDW be shipped?
HMIGT6740WCDW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up HMIGT6740WCDW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for HMIGT6740WCDW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIGT6740WCDW, subject to availability and destination.
What is this product? This product is a 15.6" wide Web HMI that delivers full HD clarity and advanced control for complex systems. Its sleek design and powerful features make it the perfect choice for industries seeking high performance and reliability. Select this panel for its expansive display, secure connectivity, and durable build. It ensures smooth operation, fast updates, and compliance with global standards, making it ideal for critical industrial environments. What is the product technical and installation information? It features a vivid 1920x1080 Full HD resolution, capacitive touch, IP66/IP67 protection, dual Ethernet ports, and 1GB RAM with 4GB flash storage. Its HTML5 browser and rapid rendering guarantee superior performance for demanding applications. Installation is simple, with panel or VESA mounting options, and a cut-out size of 394 x 250 mm. Remote configuration and flexible orientation options streamline setup, reducing downtime and enhancing operational efficiency. This offer includes the HMI panel with integrated memory and interfaces. Fully compatible with Schneider Electric EcoStruxure architecture, supporting PLCs, drives, energy monitoring, and building automation systems for complete operational synergy. What is the product range information? Harmony GTW6 range delivers secure, IIoT-ready HMIs with advanced connectivity and durable design. Ideal for industrial, energy, and building sectors, it ensures future-proof solutions with easy integration and superior user experience. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Product or component type | Touch panel screen |
Complementary
| Display size | 15.6 inch |
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 1920 x 1080 pixels full HD |
| Touch panel | Multi-touch projected capactive technology (PCT) |
| Backlight lifespan | 50000 hours with white |
| [Us] rated supply voltage | 12...24 V DC |
| Inrush current | 30 A |
| Input voltage limits | 10.8…28.8 V DC |
| voltage endurance | 1000 V AC during 1 min |
| Local signalling | Status LED green, steady for operating |
| Maximum power consumption in W | 31 W maximum |
| Memory description | Built in flash memory 4 GB |
| Processor frequency | 1600 MHz |
| Memory description | Backup memory NVRAM 512 KB |
| Integrated connection type | 2 USB 2.0 port USB type A 2 10/100/1000 BASE-TX; SD card slot |
| Electrical connection | Cable 2 mm², 14 AWG, max resistance 100 Ohm for functional grounding |
| Type of cooling | AN (air natural) |
| Cut-out dimensions | 394 x 250 mm panel cut dimension |
| Height | 264 mm |
| Width | 408 mm |
| Depth | 64 mm |
| Net weight | 5.3 kg |
Environment
| Standards | EN 61010-2-201 |
| Product certifications | UL |
| Directives | 2014/35/EU - low voltage directive |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non condensing |
| Storage Relative Humidity | 10…90 % non condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP67f (front panel (in enclosure)) conforming to UL 50 |
| Pollution degree | 2 |
| Environmental characteristic | Corrosive gas free |
| Shock resistance | 147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Vibration resistance | 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
| Insulation resistance | > 10 MOhm |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 |
