Schneider Electric
DZ5CE063Cable ends, Linergy TR cable ends, single conductor, green, 6mm², Ferrules with sleeve, long size, 10 sets of 100

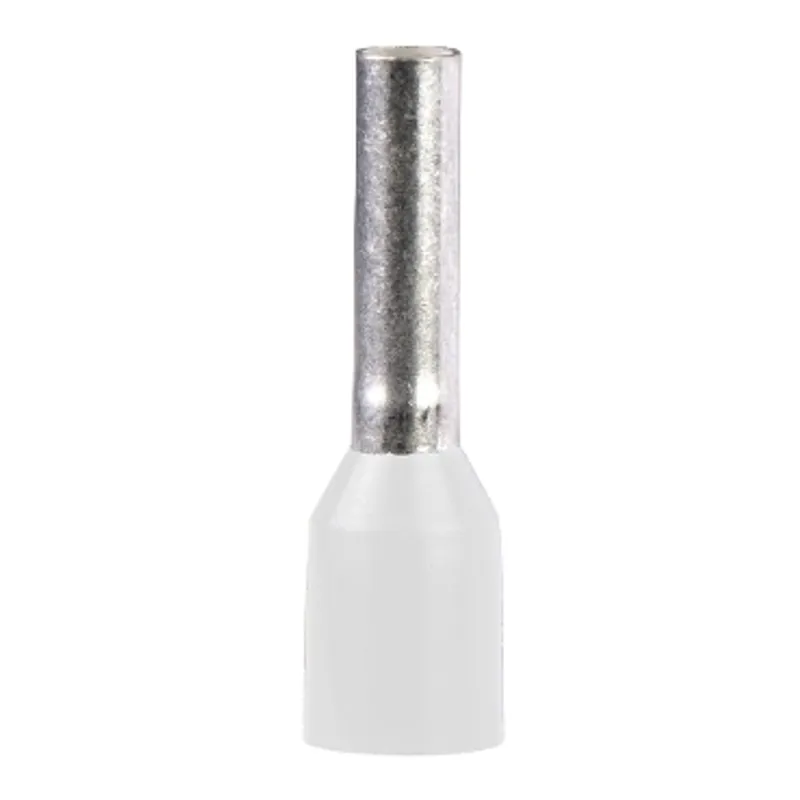

Schneider Electric DZ5CEB005
Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², Ferrules with sleeve, medium size, 1 bag
- MPN
- DZ5CEB005
- EAN
- 3389110178340
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original DZ5CEB005 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CEB005?
Linergy cable end Single insulated without marker tag holder. It applied to single conductor with 0.5 mm² cable cross section. It has white surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 10 sets of 50. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Bag |
| Quantity per set | 10 sets of 50 |
| Cable cross section | 0.5 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | White |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 22 |
| Bezel size | Ø 3.1 mm |
| Tube diameter | 1.3 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| Net weight | 0.38 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 500 BB1, 21.000 cm × 4.000 cm × 1.000 cm (L × W × H), 39.000 g |
| Package 3 | 20000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.920 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CEB005: frequently asked questions
Can I still buy the DZ5CEB005 now that it is discontinued?
Yes. Schneider Electric has discontinued the DZ5CEB005, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can DZ5CEB005 be shipped?
DZ5CEB005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CEB005 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CEB005 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CEB005, subject to availability and destination.
