Schneider Electric DZ5CE063D

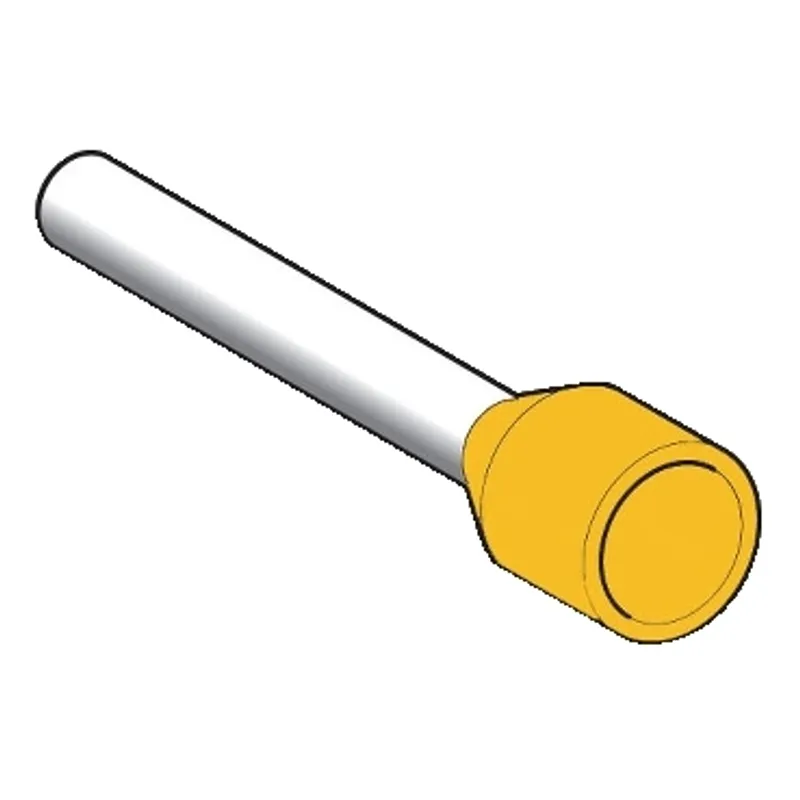

Cable ends, Linergy TR cable ends, single conductor, yellow, 6mm², for insulated cable, long size, 10 sets of 100
- MPN
- DZ5CE063D
- EAN
- 3389110211443
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original DZ5CE063D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CE063D?
Linergy cable end insulated without marker tag holder. It applied to single conductor with 6 mm² cable cross section. It has yellow surface treatment. It is long size without marker tag holder. Packing by individual bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Long |
| Standards | DIN 46228-4 |
| Type of packing | Individual bag |
| Quantity per set | Set of 100 |
| Cable cross section | 6 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Yellow |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 10 |
| Bezel size | Ø 6.9 mm |
| Tube diameter | 3.9 mm |
| Length | 26 mm |
| Tube length | 18 mm |
| Net weight | 0.065 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 100 BB1, 14.000 cm × 12.000 cm × 2.000 cm (L × W × H), 50.000 g |
| Package 3 | 4000 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 2.235 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CE063D: frequently asked questions
Can I still buy the DZ5CE063D now that it is discontinued?
Yes. Schneider Electric has discontinued the DZ5CE063D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can DZ5CE063D be shipped?
DZ5CE063D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CE063D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CE063D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CE063D, subject to availability and destination.
