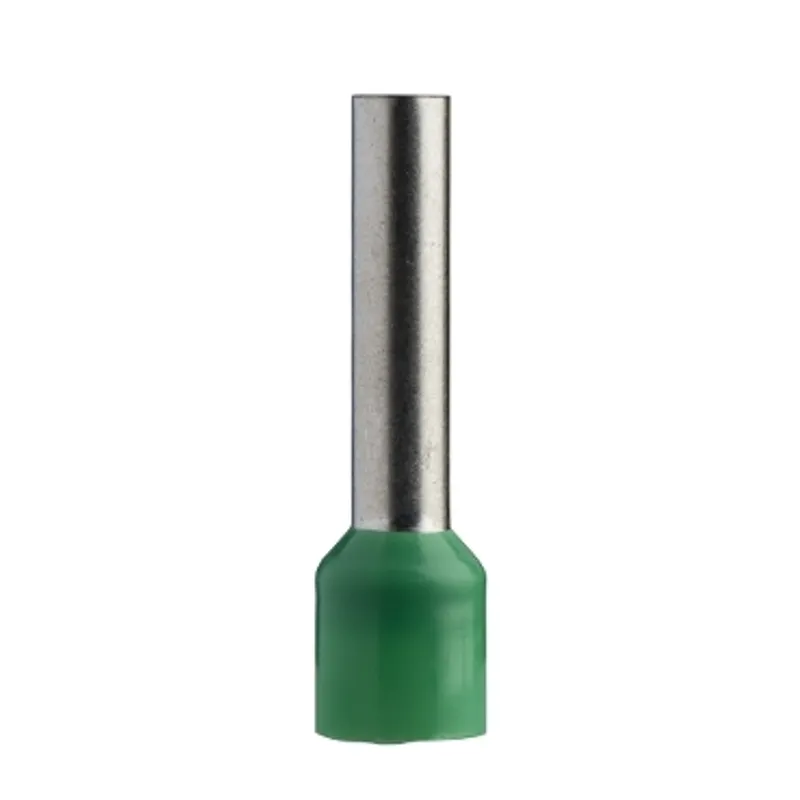

Schneider Electric DZ5CE063
Cable ends, Linergy TR cable ends, single conductor, green, 6mm², Ferrules with sleeve, long size, 10 sets of 100
- MPN
- DZ5CE063
- EAN
- 3389110537178
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CE063?
Linergy cable end insulated without marker tag holder. It applied to single conductor with 6 mm² cable cross section. It has green surface treatment. It is long size without marker tag holder. Packing by individual bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Long |
| Standards | NF C 63-023 |
| Type of packing | Individual bag |
| Quantity per set | Set of 100 |
| Cable cross section | 6 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Green |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 10 |
| Bezel size | Ø 6.9 mm |
| Tube diameter | 3.9 mm |
| Length | 26 mm |
| Tube length | 18 mm |
| Net weight | 0.065 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.400 g |
| Package 2 | 100 BB1, 14.000 cm × 14.000 cm × 1.500 cm (L × W × H), 52.000 g |
| Package 3 | 8000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.481 kg |
