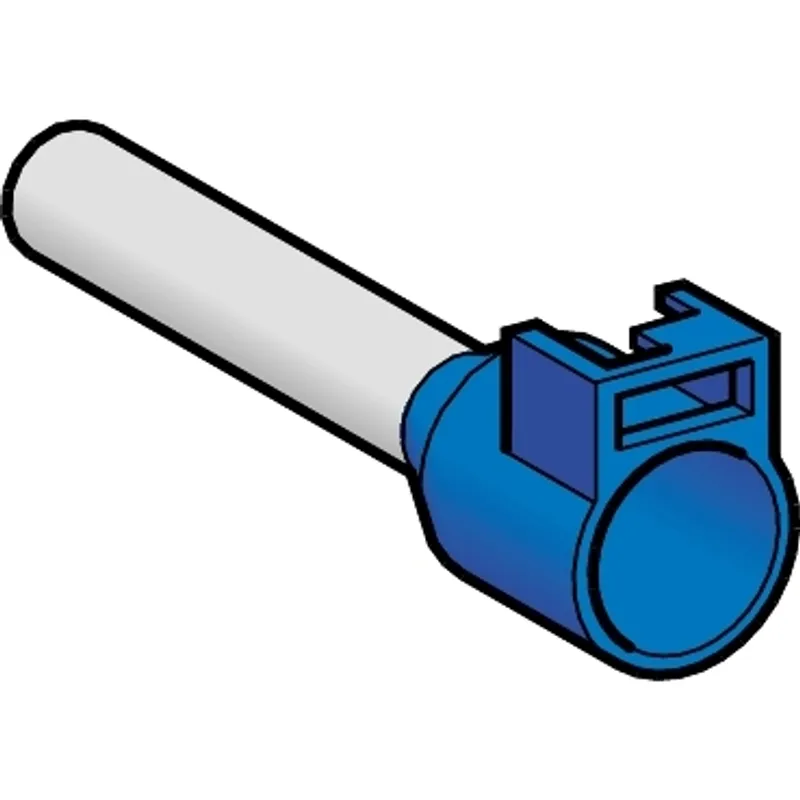

Schneider Electric DZ5CA502D
Cable end, Linergy TR cable ends, single conductor, blue, 50 mm², medium size, for insulated, clip-in type, 1 bags
- MPN
- DZ5CA502D
- EAN
- 3389110211252
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original DZ5CA502D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CA502D?
Linergy cable end insulated for clip-in marker tag holder. It is applied to single conductor with 50 mm² cable cross section. It has blue surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 set of 20. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-4 |
| Type of packing | Bag |
| Quantity per set | Set of 20 |
| Cable cross section | 50 mm² |
| Cable end type | Single conductor |
| Additional information | For additional marker tag holder |
| Colour | Blue |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 1/0 |
| Bezel size | Ø 16 mm |
| Tube diameter | 11 mm |
| Length | 36 mm |
| Tube length | 20 mm |
| CAD overall depth | 36 mm |
| Net weight | 0.06 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 3.800 cm × 2.000 cm × 1.800 cm (L × W × H), 3.000 g |
| Package 2 | 20 BB1, 12.500 cm × 12.000 cm × 3.000 cm (L × W × H), 61.000 g |
| Package 3 | 80 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 565.000 g |
