Schneider Electric
DZ5CA253DCable end, Linergy TR cable ends, single conductor, yellow, 25mm², for insulated cable, medium size, 10 sets of 100
Schneider Electric DZ5CA353D
Cable end, Linergy TR cable ends, single conductor, red, 35 mm², long size, for insulated, clip-in type, 10 sets of 100
- MPN
- DZ5CA353D
- EAN
- 3389110211245
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original DZ5CA353D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

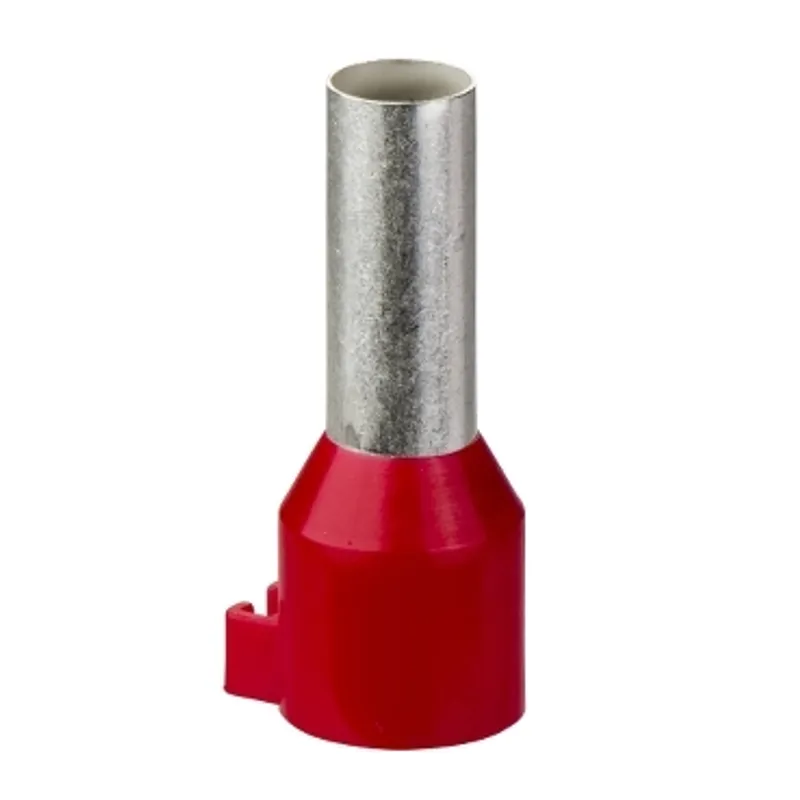

What is the Schneider Electric DZ5CA353D?
Linergy cable end insulated for clip-in marker tag holder. It is applied to single conductor with 35 mm² cable cross section. It has red surface treatment. It is long size without marker tag holder. Packing by dispenser pack and quantity per 1 sets of 20. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Long |
| Standards | DIN 46228-4 |
| Type of packing | Bag |
| Quantity per set | Set of 20 |
| Cable cross section | 35 mm² |
| Cable end type | Single conductor |
| Additional information | For additional marker tag holder |
| Colour | Red |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 2 |
| Bezel size | Ø 13.5 mm |
| Tube diameter | 8.7 mm |
| Length | 39 mm |
| Tube length | 25 mm |
| CAD overall depth | 39 mm |
| Net weight | 0.06 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.100 g |
| Package 2 | 20 BB1, 7.000 cm × 9.000 cm × 2.500 cm (L × W × H), 55.000 g |
| Package 3 | 800 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.052 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CA353D: frequently asked questions
Can I still buy the DZ5CA353D now that it is discontinued?
Yes. Schneider Electric has discontinued the DZ5CA353D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can DZ5CA353D be shipped?
DZ5CA353D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CA353D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CA353D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CA353D, subject to availability and destination.
