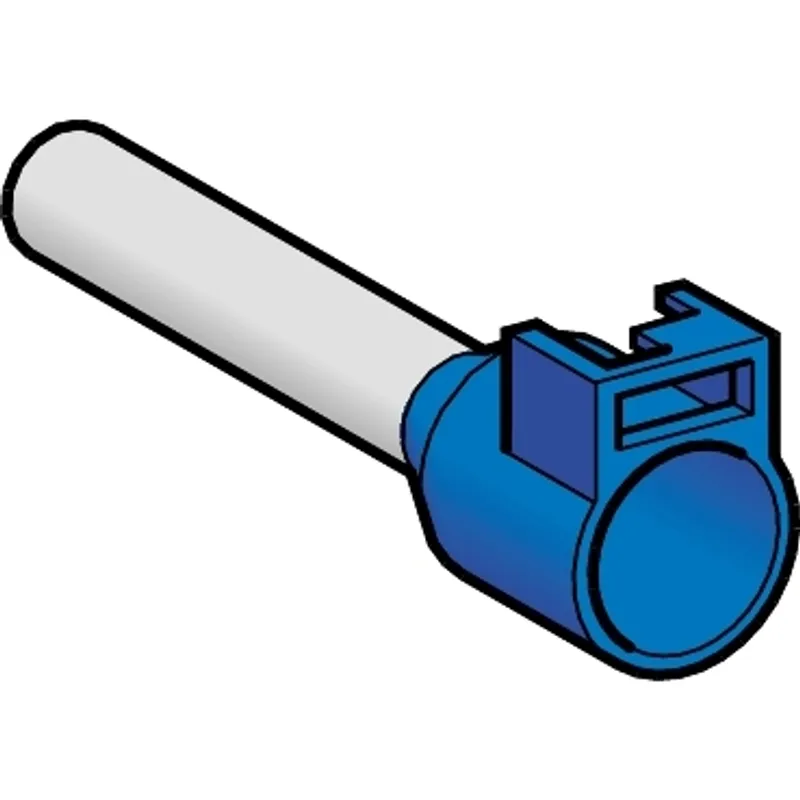

Schneider Electric DZ5CA502
Cable end, Linergy TR cable ends, single conductor, blue, medium size, 50 mm², clip-in type, 10 sets of 100
- MPN
- DZ5CA502
- EAN
- 3389110535471
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CA502?
Linergy cable end insulated for clip-in marker tag holder. It is applied to single conductor with 50 mm² cable cross section. It has blue surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 set of 20. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Bag |
| Quantity per set | Set of 20 |
| Cable cross section | 50 mm² |
| Cable end type | Single conductor |
| Additional information | For additional marker tag holder |
| Colour | Blue |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 1/0 |
| Bezel size | Ø 16 mm |
| Tube diameter | 11 mm |
| Length | 36 mm |
| Tube length | 20 mm |
| CAD overall depth | 36 mm |
| Net weight | 0.06 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 3.800 cm × 1.900 cm × 1.700 cm (L × W × H), 3.000 g |
| Package 2 | 20 BB1, 13.000 cm × 13.000 cm × 2.000 cm (L × W × H), 61.000 g |
| Package 3 | 2000 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.875 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CA502: frequently asked questions
When can DZ5CA502 be shipped?
DZ5CA502 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CA502 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CA502 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CA502, subject to availability and destination.
