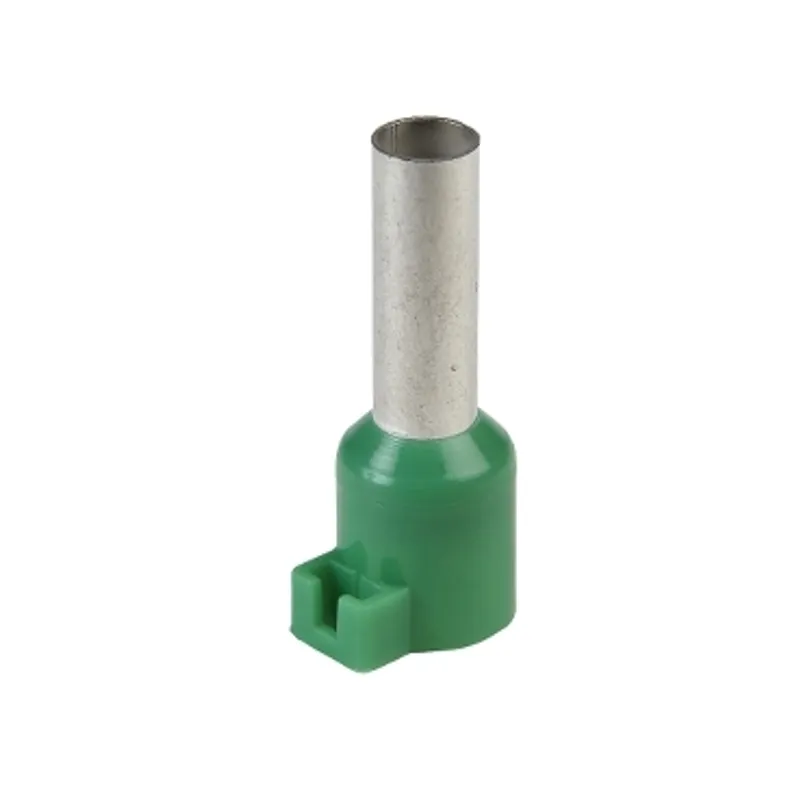

Cable end, Linergy TR cable ends, Single conductor, Green, 6mm², medium size, 10 sets of 100
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linergy TR Cable ends |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.05 kg |
Shipping & availability
When can DZ5CA062 be shipped?
DZ5CA062 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CA062 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CA062 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CA062, subject to availability and destination.
Linergy cable end insulated for clip-in marker. It applied to single conductor with 6 mm² cable cross section. It has green surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Bag |
| Quantity per set | Set of 100 |
| Cable cross section | 6 mm² |
| Cable end type | Single conductor |
| Additional information | For additional marker tag holder |
| Colour | Green |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 10 |
| Bezel size | Ø 6.9 mm |
| Tube diameter | 3.9 mm |
| Length | 20 mm |
| Tube length | 12 mm |
| CAD overall depth | 20 mm |
| Net weight | 0.045 kg |
| Ambient air temperature for operation | -20…105 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.400 cm |
| Package 1 Width | 0.400 cm |
| Package 1 Length | 1.400 cm |
| Package 1 Weight | 0.400 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 6.000 cm |
| Package 2 Length | 9.000 cm |
| Package 2 Weight | 41.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 8000 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.530 kg |
| Warranty | 18 months |
