Schneider Electric DZ5CA025D

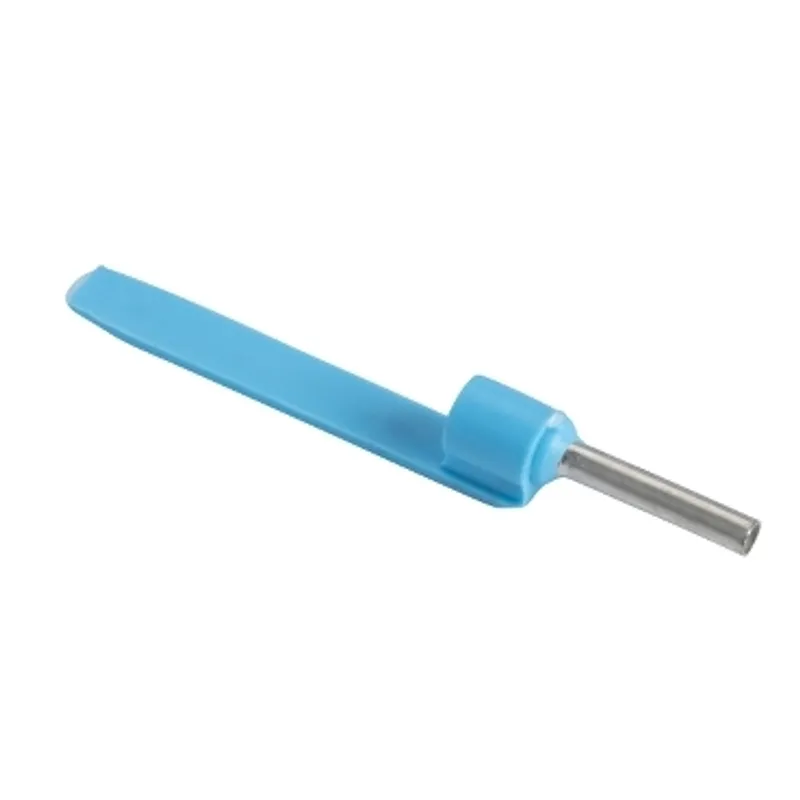

Cable end, Linergy TR cable ends, Single conductor, blue, 2.5mm², medium size, markable, insulated, 10 sets of 100
- MPN
- DZ5CA025D
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CA025D?
Schneider Electric Cable end, Linergy TR cable ends, Single conductor, blue, 2.5mm², medium size, markable, insulated, 10 sets of 100, manufacturer part number DZ5CA025D. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-4 |
| Type of packing | String of bags |
| Quantity per set | 10 sets of 100 |
| Cable cross section | 2.5 mm² |
| Cable end type | Single conductor |
| Additional information | With integrated marker tag holder |
| Colour | Blue |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 14 |
| Bezel size | Ø 4.7 mm |
| Tube diameter | 2.5 mm |
| Length | 14 mm |
| Tube length | 8 mm |
| CAD overall depth | 32 mm |
| Net weight | 0.25 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.200 g |
| Package 2 | 1000 BB1, 24.500 cm × 9.000 cm × 5.000 cm (L × W × H), 223.000 g |
| Package 3 | 15000 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.623 kg |
DZ5CA025D: frequently asked questions
When can DZ5CA025D be shipped?
DZ5CA025D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CA025D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CA025D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CA025D, subject to availability and destination.
