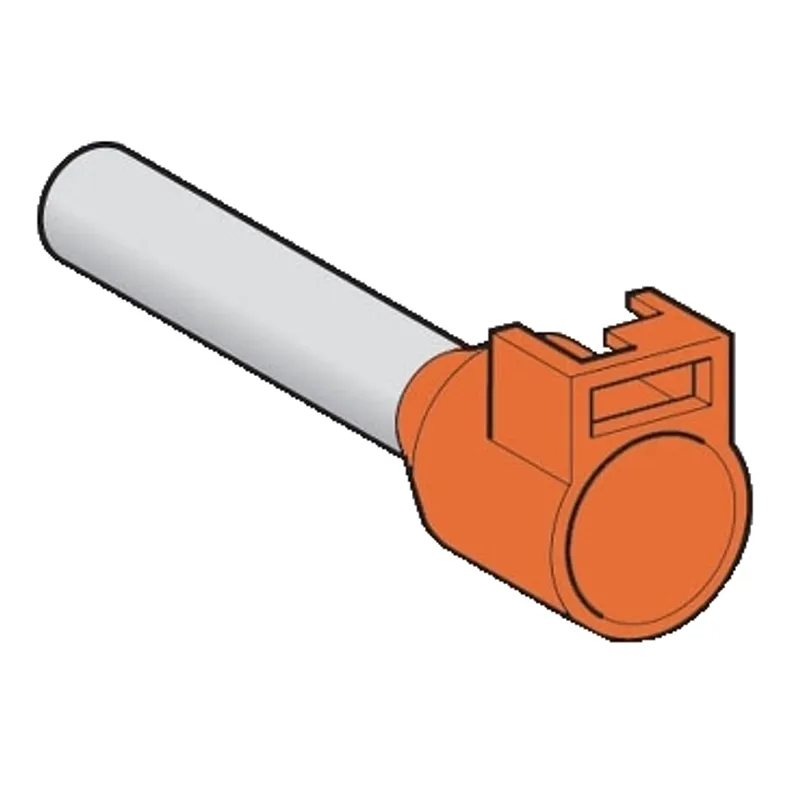

Schneider Electric DZ5CA042
Cable end, Linergy TR cable ends, Single conductor, orange, 4mm², medium size, markable, 10 sets of 100
- MPN
- DZ5CA042
- EAN
- 3389110535679
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric DZ5CA042?
Linergy cable end insulated for clip-in marker. It applied to single conductor with 4 mm² cable cross section. It has red surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is 1 set of 20. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | NF C 63-023 |
| Type of packing | Bag |
| Quantity per set | 10 sets of 100 |
| Cable cross section | 4 mm² |
| Cable end type | Single conductor |
| Additional information | For additional marker tag holder |
| Colour | Orange |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 12 |
| Bezel size | Ø 5.4 mm |
| Tube diameter | 3.2 mm |
| Length | 20 mm |
| Tube length | 12 mm |
| CAD overall depth | 20 mm |
| Net weight | 0.3 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.300 g |
| Package 2 | 1000 BB1, 26.000 cm × 11.000 cm × 4.500 cm (L × W × H), 314.000 g |
| Package 3 | 35000 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 11.910 kg |
