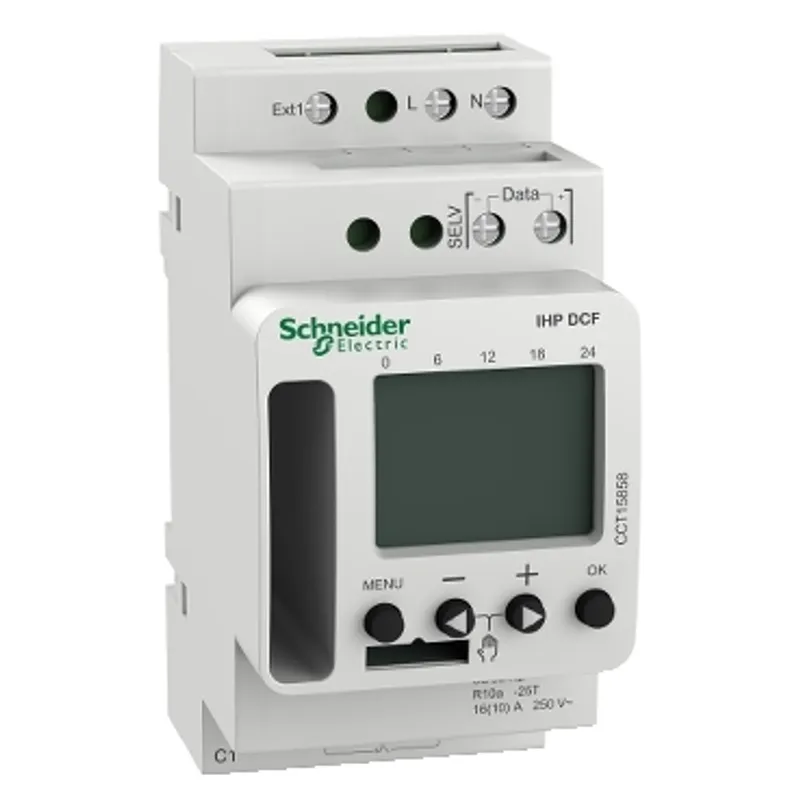

Acti9 IHP DCF (24h/7d) SMART programmable time switch
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IHP |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.14 kg |
Shipping & availability
When can CCT15858 be shipped?
CCT15858 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CCT15858 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CCT15858 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CCT15858, subject to availability and destination.
IHP+ DCF SMART digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 84 Savings on mains cut off with battery reserve: 10 years Manual and remote overrides are possible 1 channel output Programming could be done also with memory key and PC software Exact time is received by DCF radio signal via an external DCF antenna
Specifications
Specifications
| range of product | Acti9 |
| Product name | Acti9 IHP |
| Device short name | IHP DCF |
| Product or component type | Programmable digital time switch |
| Device application | Building |
| Number of channels | 1 |
| Available equipment | Memory stick |
| User language | English, French, German, Dutch, Italian, Spanish, Danish, Norwegian, Swedish, Finnish, Polish, Czech, Romanian, Hungarian, Slovene, Croatian, Serbian, Bulgarian |
| Load type | Incandescent lamp: 2600 W, halogen lamp: 2600 W, non-corrected fluorescent tube: 2600 VA, serial-compensated fluorescent tube: 2600 VA, parallel compensated fluorescent lamp: 400 VA (48 µF), compact fluorescent lamp: 400 W, < 2 W LED lamp: 25 W, > 2 W LED lamp: 200 W |
| Maximum power consumption in W | 0.8 W standby |
| Maximum switching current | 10 A - 250 V AC pf = 0.6, 16 A - 250 V AC pf = 1 |
| Minimum switching current | 10 mA 230 V AC, 100 mA 24 V AC/DC |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Electrical insulation class | Class II |
| Output type | Dry contact |
| Accuracy | +/- 0.25 s/day 25 °C |
| contacts type | C/O |
| Cycle duration | 24 hours + 7 days |
| Maximum number of switchings | 84 |
| Minimum interval duration | 1 s |
| Function available | External input for override per channel, Code lock function, Holiday schedules, Automatic winter/summer time changeover, On/off switching times, Pulse programming, Cycle programming, Switch preselection, Time synchronisation via DCF antenna possible |
| Control button type | 4 push-buttons |
| Display type | Backlit LCD |
| Information displayed | Operating time counter |
| Backup time | 10 years time and program saving |
| Type of setting | Weekly programming, Random program 2 |
| Connections - terminals | 2 x 0.5…2.5 mm² screw terminals solid or flexible, 1 x 2.5 mm² screw terminals solid or flexible with sleeve |
| Mounting support | TH35 DIN rail conforming to EN 60715 |
| Width | 45 mm |
| Height | 92.6 mm |
| Depth | 66.7 mm |
| Net weight | 136 g |
| Marking | CE |
| Overvoltage category | Class 3 |
| Function | Pulse programming, random function, external input for override |
| Absence for holidays | Yes |
| Time changeover | Automatic |
| Updated by | DCF77 |
| Standards | EN 60730-2-7:2010 |
| Ambient air temperature for operation | -25…55 °C |
| ambient air temp for storage/transportation | -30…70 °C |
| Relative humidity | 90 %, non-condensing |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 181.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.624 kg |
| Warranty (in months) | 18 |
