Schneider Electric BXS750MI-GR

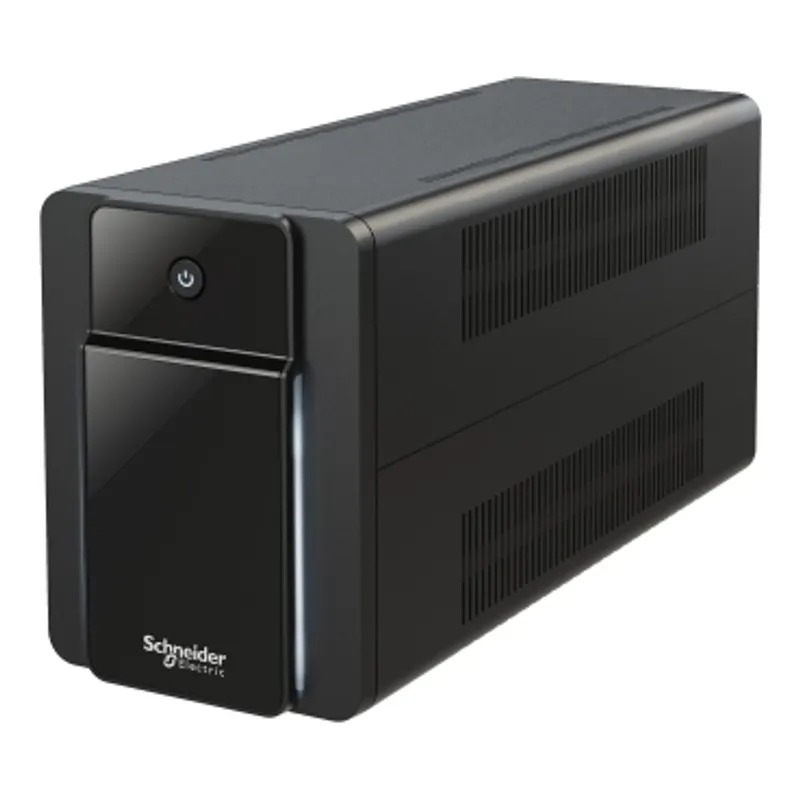

SE Back-UPS, 750VA, Tower, 230V, 4 x CEE 7/7 Schuko outlets, AVR

MPN
BXS750MI-GR
Category
APC Back-UPS
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BXS750MI-GR (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BXS750MI-GR?

Schneider Electric SE Back-UPS, 750VA, Tower, 230V, 4 x CEE 7/7 Schuko outlets, AVR, manufacturer part number BXS750MI-GR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Max. Capacity Used
Main Input Voltage230 V AC 1 phase
Cos phi0.63
Input voltage limits140...300 V
Network frequency50/60 Hz +/- 5 Hz auto-sensing
Output voltage230 V AC 1 phase
Rated power in W410 W
rated power in VA750 VA
Output connection type4 Schuko
USB Charging PortNone
Maximum configurable power in VA750 VA
Maximum configurable power in W410 W
Transfer time6 ms typical : 10 ms maximum
UPS typeLine interactive
Wave typeStepped approximation to a sinewave
Full load runtime00:01:00 390 W
Half load runtime00:08:30 195 W
Output frequency50/60 Hz +/- 1 Hz sync to mains
Battery capacity9.0 Ah
Battery typeLead-acid battery
Control panelLED Status display with on line : on battery
UPS connectivityNone
Surge energy rate273 J
Cable length1.2 m
Number of cables1
ColourBlack
Height160 mm
Width120 mm
Depth355 mm
Net weight5.4 kg
Mounting preferenceNo preference
Mounting modeTower
Two post mountable0
USB compatibleYes
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Range of productBack-UPS
Product or component typeUninterruptible power supply (UPS)
Product certificationsCE, CB
StandardsEN/IEC 62040-1:2019/A11:2021
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…40 °C
Storage altitude0…3000 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Acoustic level40 dBA
Operating altitude0...3000 m
Run TimeView Runtime Graph
EfficiencyView Efficiency Graph
Battery voltage12 V
Battery graph commentsCurve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time8 h
Battery design life3…5 year(s)
Battery life3…5 year(s)
Replacement batteryRBC17

Packaging

Package 11 PCE, 45.500 cm × 23.000 cm × 26.000 cm (L × W × H), 7.156 kg
Package 24 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 35.199 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BXS750MI-GR: frequently asked questions

Can I still buy the BXS750MI-GR now that it is discontinued?

Yes. Schneider Electric has discontinued the BXS750MI-GR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BXS750MI-GR be shipped?

BXS750MI-GR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BXS750MI-GR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BXS750MI-GR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BXS750MI-GR, subject to availability and destination.
