Schneider Electric BXS500MI

SE Back-UPS, 500VA, Tower, 230V, 3 x IEC C13 outlets, AVR

MPN
BXS500MI
Category
APC Back-UPS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

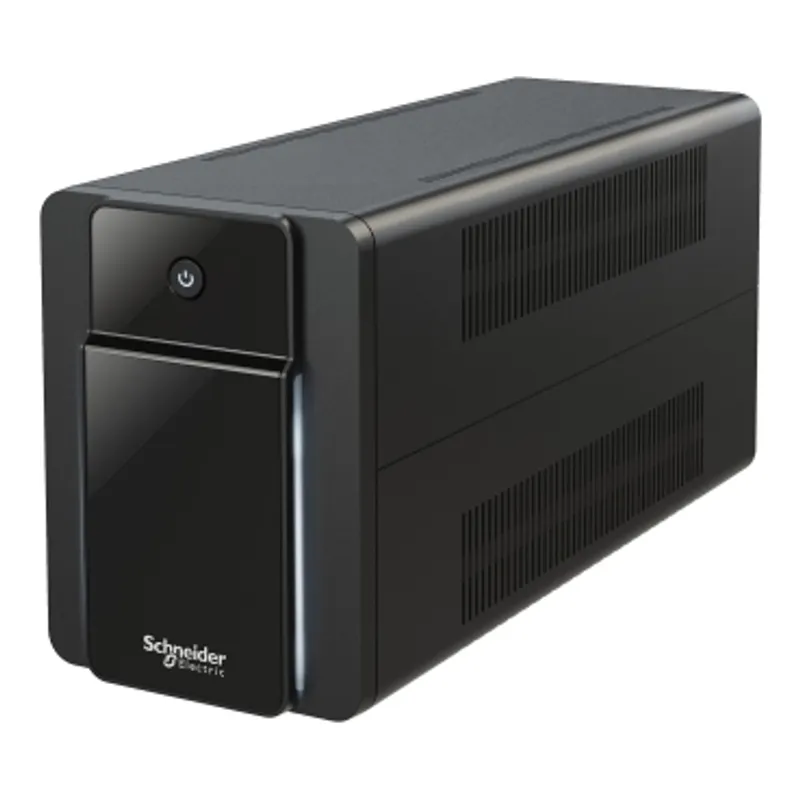

What is the Schneider Electric BXS500MI?

This Schneider Electric Back-UPS BXS500MI offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 500VA tower UPS has 3 total outlets, all of which provide battery back up and surge protection. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. Its dimensions are 13,8 x 9,8 x 31 cm and 4,2 kg. It comes with PowerChute Serial Shutdown, an easy-to-use safe system shutdown software with power and energy management features. This UPS has a 2-year warranty and CE product certification.

Specifications

Specifications

Max. Capacity Used
Main Input Voltage230 V AC 1 phase
Cos phi0.63
Input voltage limits140...300 V
Network frequency50/60 Hz +/- 5 Hz auto-sensing
Rated power in W300 W
rated power in VA500 VA
Output connection type3 IEC 60320 C13
USB Charging PortNone
Maximum configurable power in VA500 VA
Maximum configurable power in W300 W
Transfer time6 ms typical : 10 ms maximum
UPS typeLine interactive
Wave typeStepped approximation to a sinewave
Full load runtime00:01:00 300 W
Half load runtime00:07:15
Output frequency50/60 Hz +/- 1 Hz sync to mains
Battery capacity7.0 Ah
Battery typeLead-acid battery
Control panelLED Status display with on line : on battery
UPS connectivityNone
Surge energy rate273 J
Cable length1.5 m
Number of cables1
ColourBlack
Height138 mm
Width98 mm
Depth310 mm
Net weight4.2 kg
Mounting preferenceNo preference
Mounting modeTower
Two post mountable0
USB compatibleYes
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Range of productBack-UPS
Product or component typeUninterruptible power supply (UPS)
Product certificationsCE, CB
StandardsEN/IEC 62040-1:2019/A11:2021
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…40 °C
Storage altitude0…3000 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Acoustic level40 dBA
Operating altitude0...3000 m
Run TimeView Runtime Graph
EfficiencyView Efficiency Graph
Battery voltage12 V
Battery graph commentsCurve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time8 h
Battery design life3…5 year(s)
Battery life3…5 year(s)
Replacement batteryAPCRBC110

Packaging

Package 11 PCE, 37.000 cm × 22.500 cm × 19.000 cm (L × W × H), 5.430 kg
Package 23 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 17.322 kg
Package 312 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 75.916 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BXS500MI: frequently asked questions

When can BXS500MI be shipped?

BXS500MI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BXS500MI in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BXS500MI and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BXS500MI, subject to availability and destination.
